Description

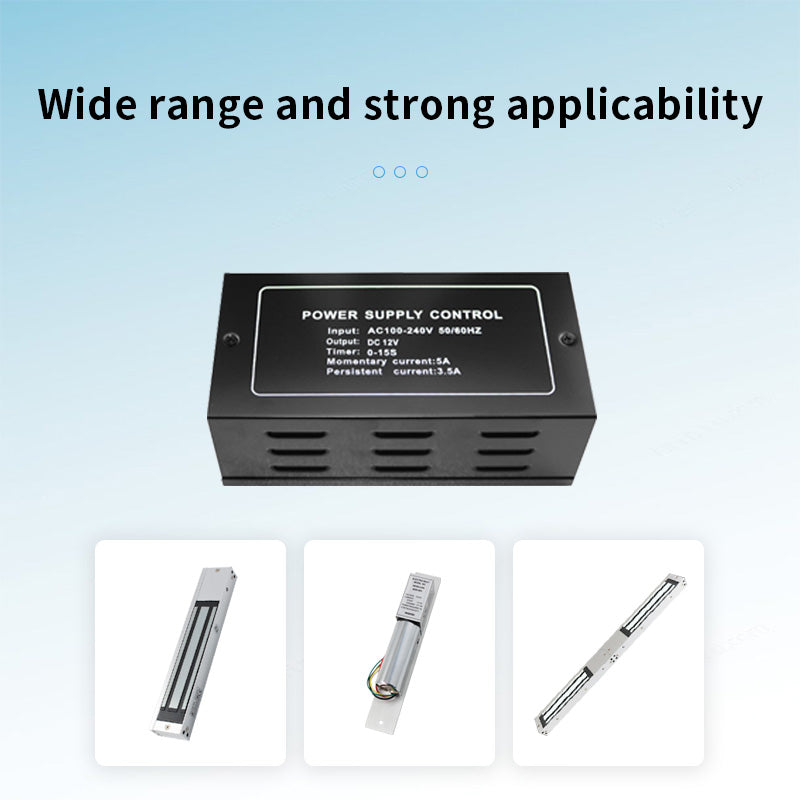

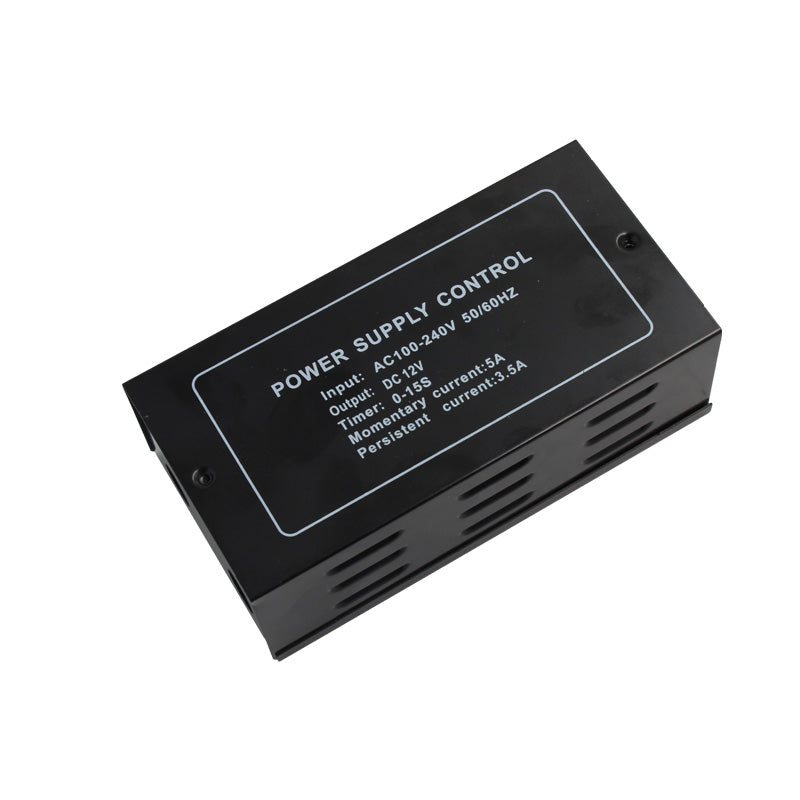

Power your access control system with this reliable 12V DC 50W power supply, designed for electric door locks, access controllers, and related security equipment. Delivering a stable 12V output with up to 5A continuous current, it ensures dependable performance for residential, commercial, and office installations. The built-in adjustable door release delay allows precise control of door unlocking time from 0 to 10 seconds, making it ideal for a wide range of access control applications. Its compact metal housing is designed for long-lasting operation across various environmental conditions.

Key Features

• Stable 12V DC output for access control and electric door lock systems
• Supports up to 5A continuous output and 5.5A peak current
• Adjustable door opening delay from 0 to 10 seconds
• Wide 100-240V AC input for versatile installation
• Compact metal enclosure for durability and reliable performance
• Suitable for offices, apartments, commercial buildings, and security systems
• Operates in temperatures from -20°C to 85°C
• Supports operation in 10% to 90% RH humidity environments

Specifications

• Product Type: Access Control Power Supply
• Input Voltage: 100-240V AC
• Output Voltage: 12.8-13.2V DC
• Continuous Output Current: 5A
• Peak Output Current: 5.5A
• Rated Power: 50W
• Door Release Delay: Adjustable from 0-10 seconds
• Operating Temperature: -20°C to 85°C
• Operating Humidity: 10% to 90% RH

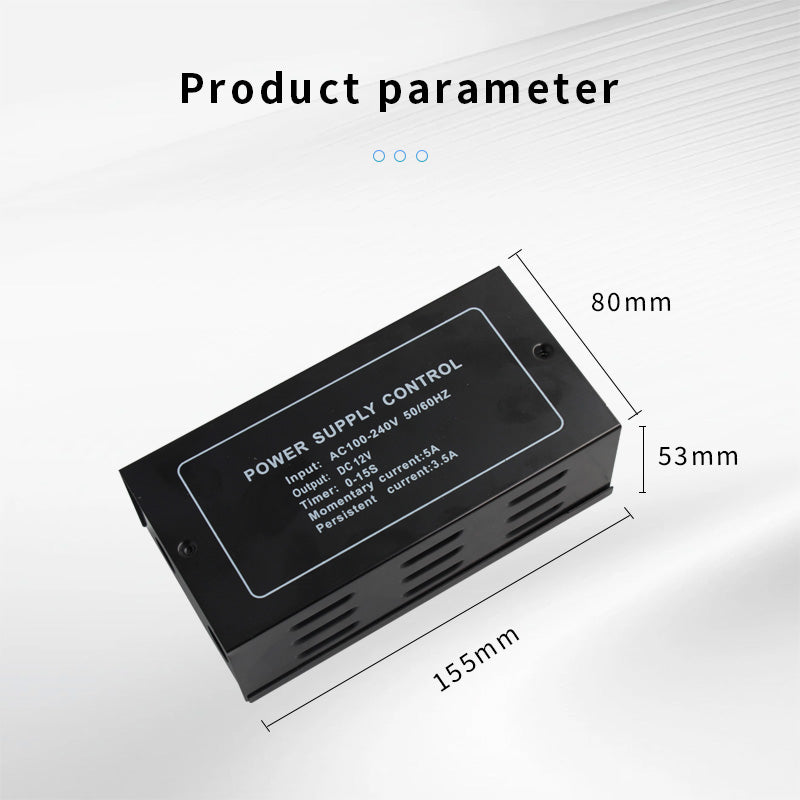

• Dimensions: 155 × 80 × 53mm

Package Contents

• 1 x Access Control Power Supply Unit

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
