Description

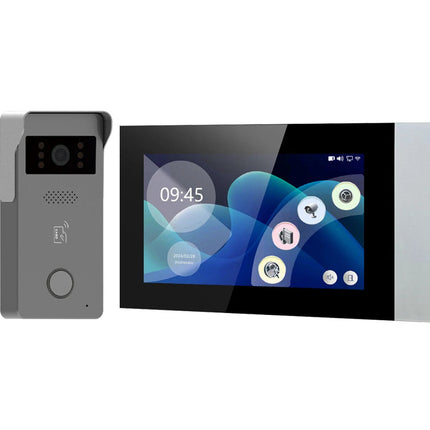

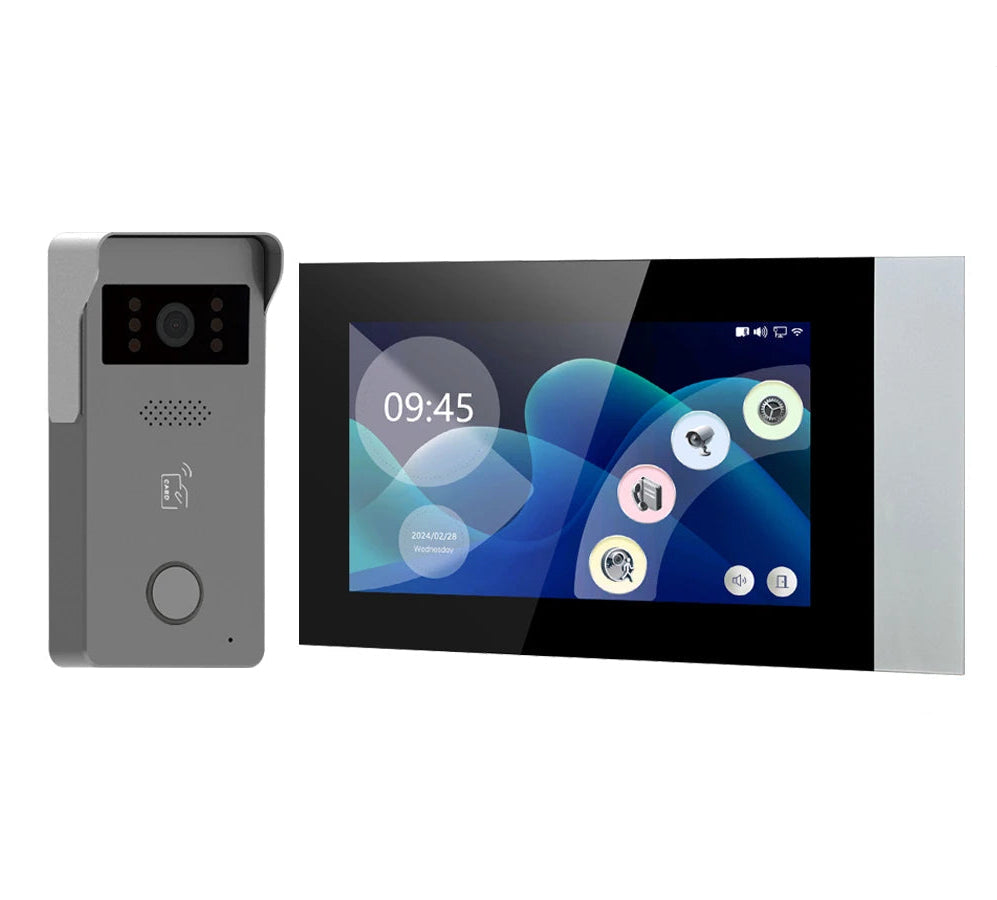

Upgrade your home entry system with this smart video intercom solution featuring a 7-inch IPS touch screen monitor and a 1080P outdoor camera. Designed for clear communication and convenient access control, this system allows you to see, speak, monitor, and unlock directly from the indoor display or via the mobile app. With night vision, RFID card unlocking, and remote monitoring support, it offers a practical and modern way to manage visitors at your door. The simple 2-wire connection ensures easy installation without complex wiring.

Key Features

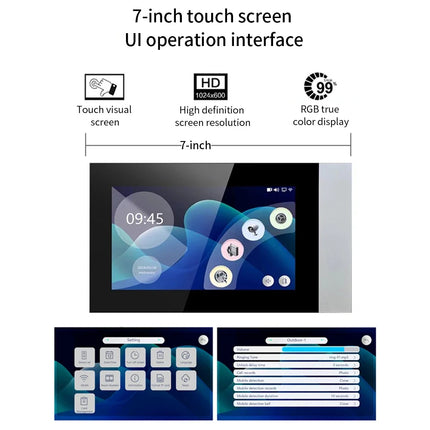

• 7" IPS touch screen with 1024 × 600 resolution for clear visuals

• 1080P 2MP outdoor camera with IR night vision (850nm, 6 LEDs)

• Remote access via Tuya App – call, video, unlock, playback & cloud storage

• Supports up to 20 users

• RFID card unlock support (13.56MHz)

• Two-wire connection with no polarity requirement

• Adjustable brightness, contrast, colour and volume

• Visitor record and pedestrian detection function

• Lock delay adjustment and multi-language OSD menu

• IR CUT filter for accurate day and night colour switching

Specifications

Indoor Monitor

• Display: 7" IPS Touch Screen

• Resolution: 1024 × 600

• Dimensions: 219 × 124 × 20mm

• Power Input: DC18V 2A

Outdoor Station

• Camera: 2MP / 1080P

• Night Vision: IR CUT with 850nm infrared LEDs

• RFID Frequency: 13.56MHz

• Dimensions: 138 × 66 × 23.5mm

Adapter

• Input: AC100–240V 50/60Hz

• Output: DC18V 2A

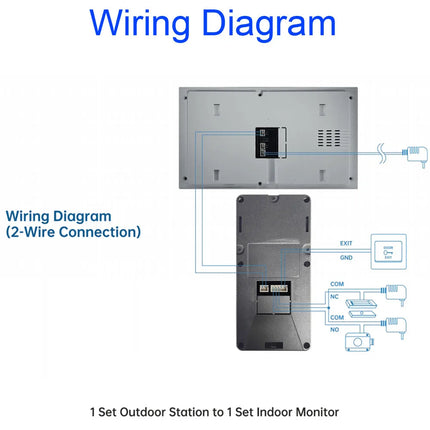

Wiring & Distance

• Monitor to Outdoor Station:

  • 0–50m (12V, RVV2×0.5mm²)

  • 0–200m (24V, RVV2×0.5mm²)

• Outdoor Station to Door Lock: 0–50m

• 2-wire connection (no polarity required)

Package Contents

• 1 × 7" Indoor Monitor

• 1 × Outdoor Camera Station

• 1 × Power Adapter

• 1 × Mounting Accessories Set

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
