Description
Engineered for electricians, maintenance engineers, and field technicians, this compact testing meter delivers dependable results for insulation checks, grounding analysis, and soil resistivity measurement. Its flexible multi-wire testing capability allows accurate readings even in demanding environments where lead resistance or interference can affect results.
Key Features:
Combines insulation resistance, earth resistance, and soil resistivity testing in one portable instrument
Smart auto-ranging system ensures stable measurements without manual switching

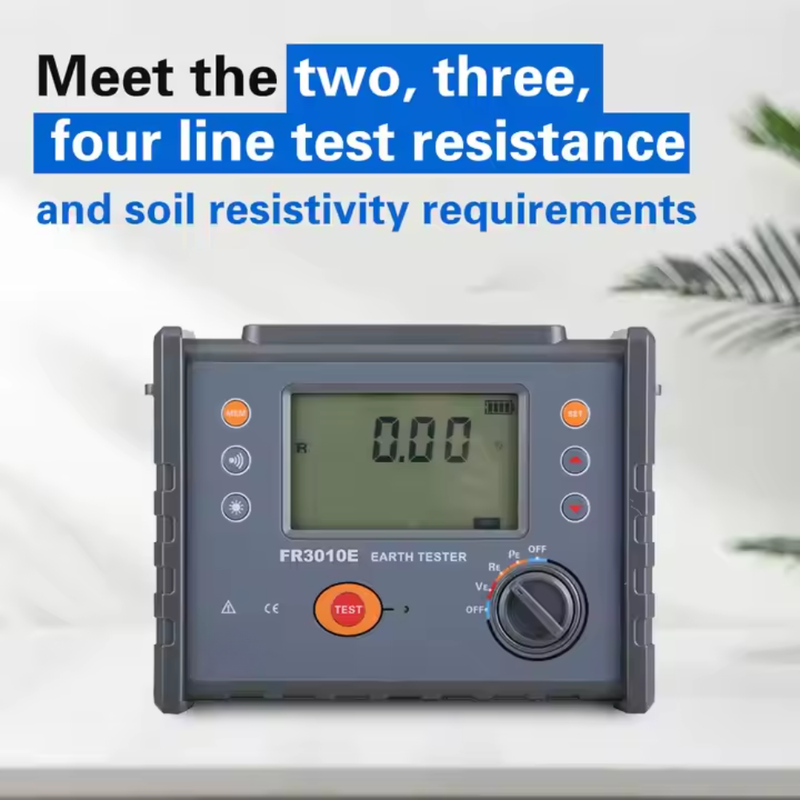

Compatible with 2-wire, 3-wire, and 4-wire test configurations for enhanced precision

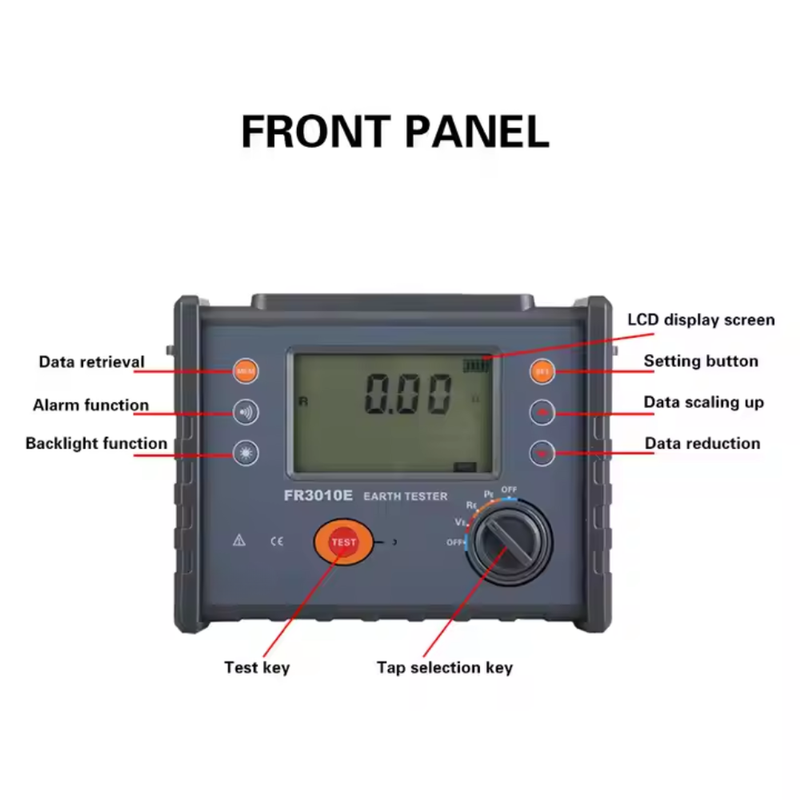

Dual analogue and digital display improves visibility and quick result interpretation
Internal memory saves up to 500 measurement records for later reference
Operates reliably across a broad temperature range for indoor and outdoor applications
High electrical isolation between internal circuits and housing for added safety
Specifications:
Measuring range: 0.00Ωm to 9999kΩ

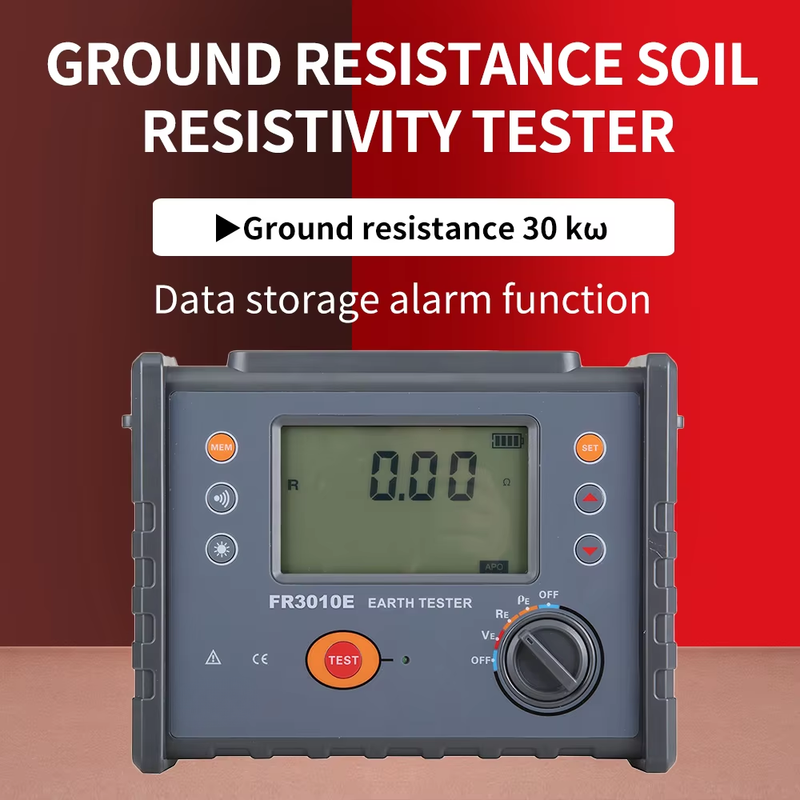

Resistance range: 0Ω to 30kΩ (automatic shifting)
Soil resistivity range: 0Ωm to 9999kΩm (automatic shifting)
Resolution: 0.001
Soil resistivity resolution: 0.01Ωm
Testing voltage: 0.00V to 600V AC
Withstanding voltage: AC 3700V/rms (between circuit and enclosure)

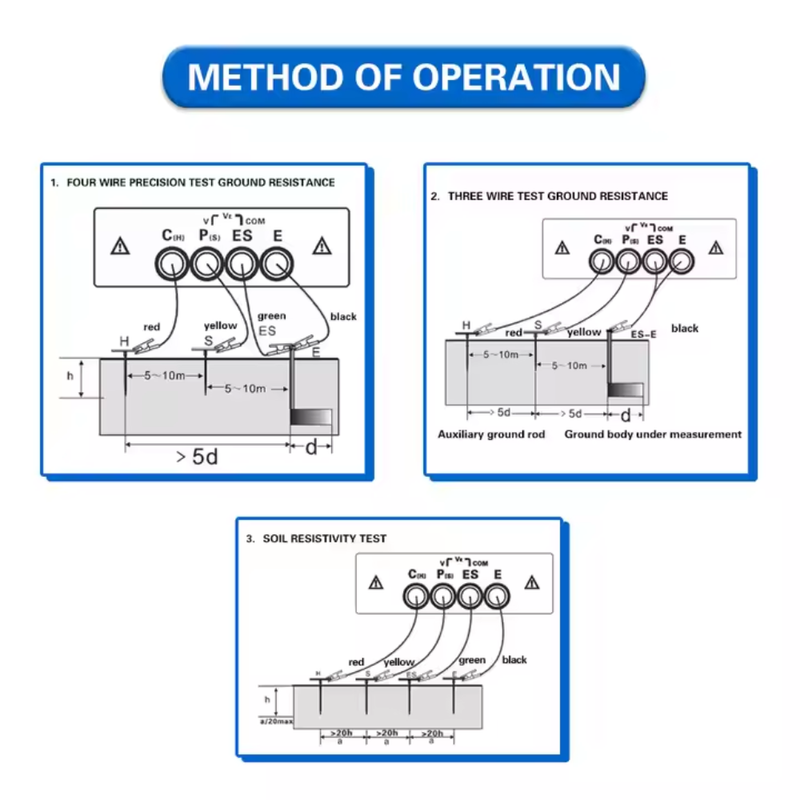

Measurement methods: 2-wire, 3-wire, 4-wire
Data storage: 500 sets
Display type: Analogue and digital
Operating temperature: -10°C to 40°C, below 80% RH
Storage temperature & humidity: -20°C to 60°C, below 70% RH
Package Contents:

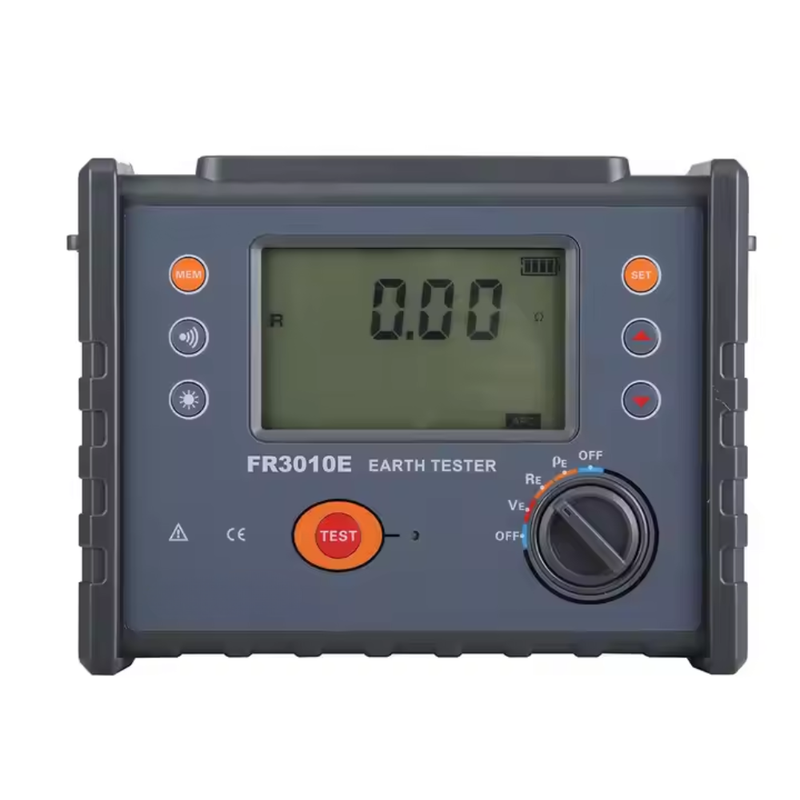

1 x Insulation resistance and soil resistivity meter
1 x User manual
