Key Features

High Measurement Range: Supports insulation resistance testing from 0.1MΩ up to 20GΩ, making it suitable for various electrical installations and equipment checks.

Multiple Test Voltages: Choose between 100V, 500V, and 2500V output settings to match different insulation testing requirements.

Dual Voltage Detection: Capable of measuring DC voltage from 0–1000V and AC voltage from 30–750V within a frequency range of 45–200Hz.

Accurate Digital Display: Clear screen layout provides precise readings for improved analysis and faster workflow.

Portable and Durable: Solid construction with a compact form factor designed for reliable performance in both industrial and educational settings.

RoHS Certified: Manufactured using environmentally compliant components that meet RoHS standards.

Specifications

Insulation Resistance Range: 0.1MΩ–20GΩ

DC Voltage Measurement: 0–1000V

AC Voltage Measurement: 30–750V (45–200Hz)

Test Voltages: 100V / 500V / 2500V

Dimensions: 21.5 × 16 × 9.2 cm

Weight: 1 kg

Package Contents

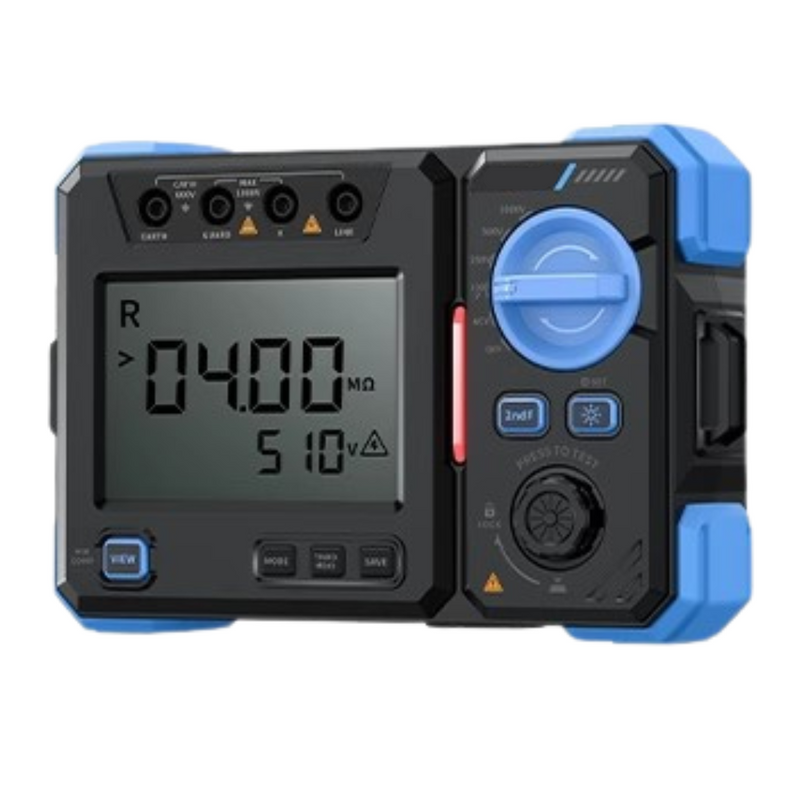

1 × Digital Insulation Resistance Tester
