Description

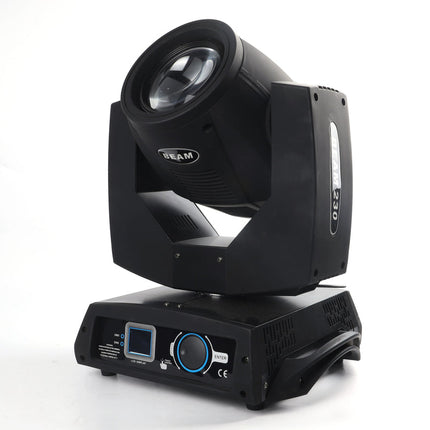

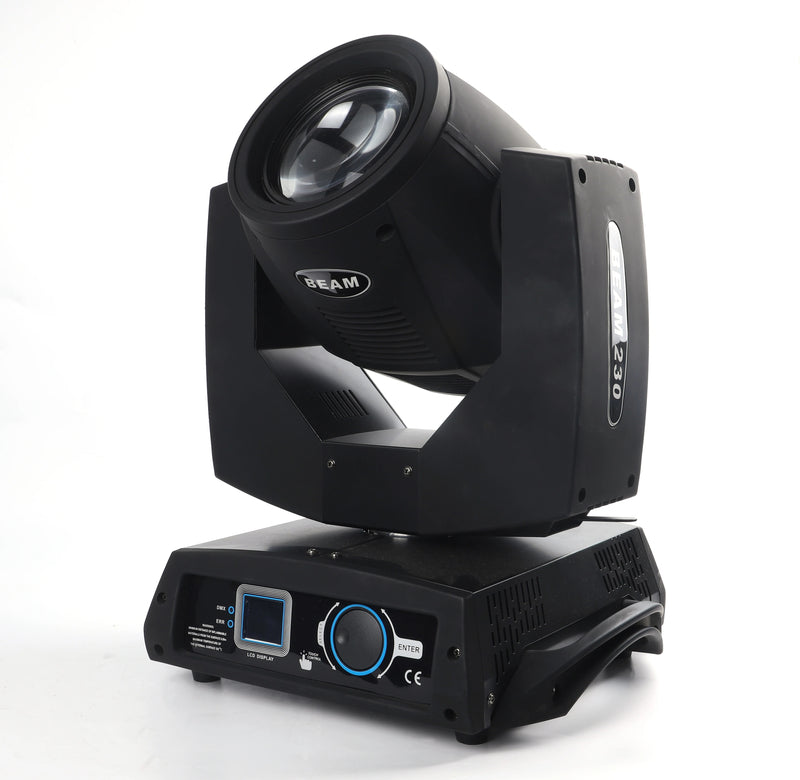

Designed for high-impact productions, this 230W 7R moving head fixture brings intense beam performance and advanced control to professional lighting setups. Its ultra-tight 3.8° beam angle produces focused aerial effects that cut through fog and atmosphere with precision. Equipped with a rich RGBW color system, multiple color and gobo options, and a 24-facet prism, this unit creates layered mid-air patterns and vibrant stage scenes for clubs, concerts, touring acts and event venues.
Key Features
• High-intensity 230W output with focused 3.8° beam for dramatic aerial effects
• RGBW color mixing with 13+1 color wheel and 16+1 fixed gobo selections
• 24-facet honeycomb prism for multi-beam and split-beam projections
• Wide 540° pan and 270° tilt range with selectable 8-bit/16-bit control
• Supports DMX512 and RDM plus auto, sound active and master-slave modes
• 7800K output delivering up to 125000 lux at 10 meters
• Variable strobe speed from 1–12Hz for dynamic lighting sequences
Specifications
• Light Source: 230W lamp + RGBW LED system
• Control Channels: 16CH
• Control Modes: DMX512, RDM, auto run, sound control, master-slave
• Pan: 540° (8Bit/16Bit resolution)
• Tilt: 270° (8Bit/16Bit resolution)
• Beam Angle: 3.8° narrow beam
• Color Temperature: 7800K
• CRI: Ra ≥ 93
• Illuminance: 125000 lux at 10m distance
• Color Wheel: 13 + 1 colors
• Gobo Wheel: 16 + 1 static gobos
• Prism: 24-facet honeycomb prism
• Strobe: Adjustable 1–12Hz
Package Contents
• 1x 230W 7R Moving Head Stage Light
