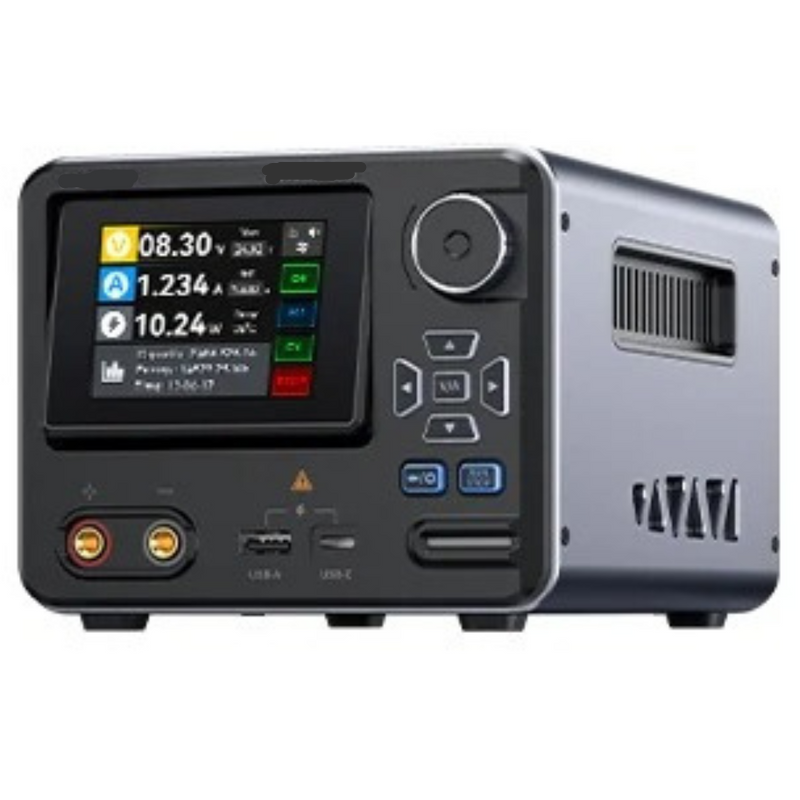

Designed for engineers, technicians, and electronics enthusiasts, this precision DC bench power source offers reliable performance for diagnostics, prototyping, and repair applications. Its advanced digital system allows smooth adjustment of voltage and current, ensuring consistent output for sensitive components and demanding tasks. The integrated color display keeps all critical data visible at a glance, while built-in USB fast charging ports add extra convenience for powering compatible devices.
Key Features
Wide adjustable range from 0–36V and 0–8A suitable for multiple testing scenarios
Ultra-fine adjustment precision with 0.01V voltage resolution and 0.001A current resolution
Integrated USB-C PD3.0 and USB-A QC3.0/FCP/AFC ports for rapid device charging
2.8-inch full-color display with brightness control for clear data visibility
Multiple safety protections including overvoltage, overcurrent, and short-circuit safeguards
Space-saving and sturdy construction for professional and hobby applications
Responsive digital control panel for smooth operation and quick parameter setting
Specifications
Input Voltage: 100–240V AC, 50/60Hz
Output Voltage: 0–36V DC
Output Current: 0–8A
Output Power: up to 285W
Voltage Accuracy: ±(0.3% + 3 digits)
Current Accuracy: ±(0.15% + 5 digits)
Load Regulation: ±(0.2% + 2 digits)
Display: 2.8-inch color screen
Operating Temperature: 0°C – 40°C
Dimensions: 138 × 214 × 115 mm
Package Contents
1 × Power Supply Unit
2 × Alligator Clip Wires
1 × USB Data Cable
1 × User Manual
