Description

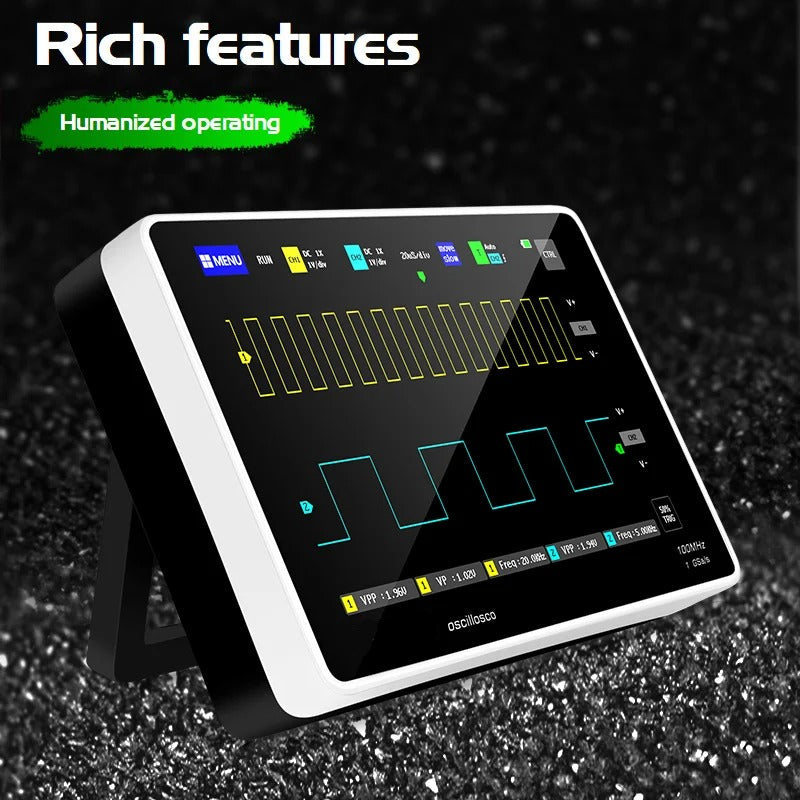

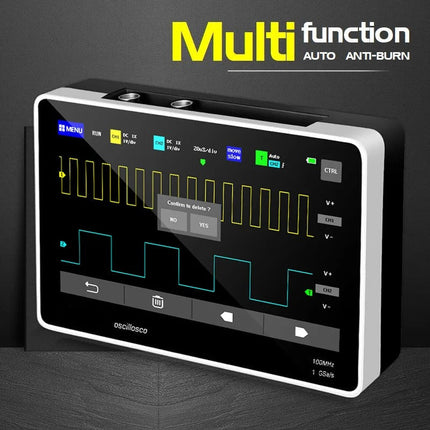

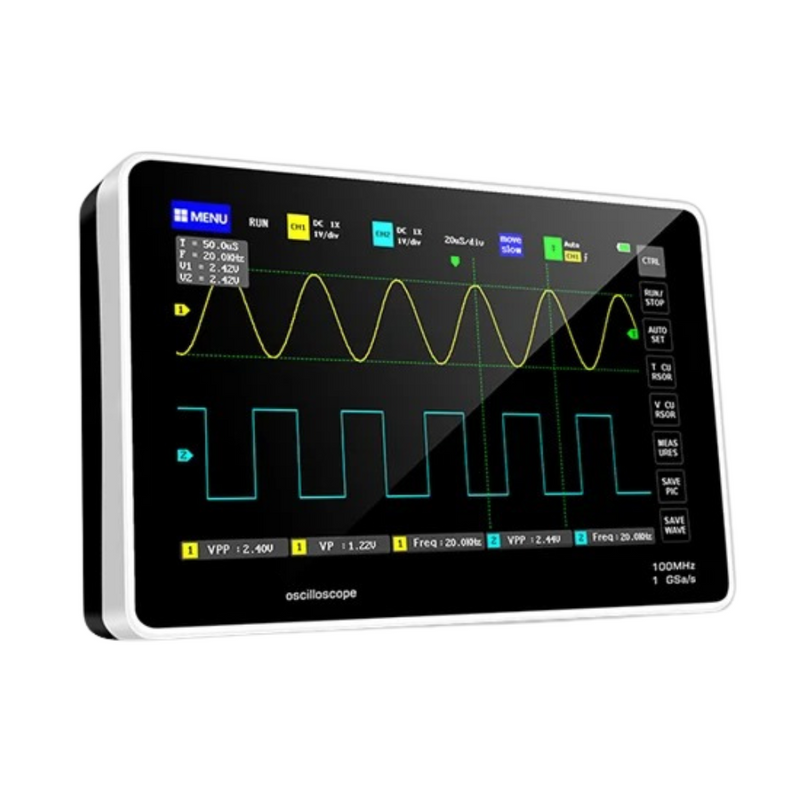

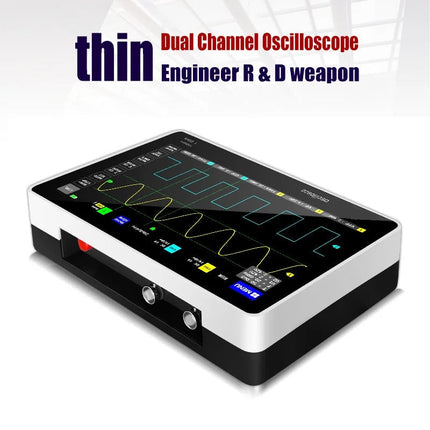

Engineered for reliable waveform inspection and portable troubleshooting, this handheld digital oscilloscope combines powerful performance with a compact, field-ready design. Featuring a responsive 7-inch color touchscreen, it allows users to analyze electronic signals clearly and efficiently whether in the lab or on-site. The dual-channel system and high-speed sampling ensure dependable results for professionals, students, and technical learners alike.
Key Features:
• Dual input channels delivering 100MHz bandwidth with a real-time 1GS/s capture rate
• Large 7-inch LCD touchscreen offers sharp, easy-to-read waveform visualization
• Enhanced input protection prevents damage up to 400V for safer measurements
• Integrated 1GB internal memory saves up to 1000 waveform records and screenshots
• Supports FFT and Lissajous modes for detailed signal and phase evaluation
• Provides 12 automatic measurement options including voltage, frequency, and duty ratio
• High-capacity 6000mAh battery enables approximately 4 hours of cordless operation
• USB connectivity allows quick transfer of data to a computer
• Durable and lightweight ABS housing suitable for mobile and field applications
Specifications:
• Bandwidth: 100MHz (Dual Channel)
• Sampling Rate: 1GSa/s
• Display: 7-inch TFT LCD, 800 × 480 resolution
• Storage Depth: 240Kbit
• Voltage Range: 1X: 0–40V / 10X: 0–400V
• Input Resistance: 1MΩ
• Battery: 6000mAh rechargeable lithium battery
• Dimensions: 184 × 124 × 50 mm
• Weight: 986 g

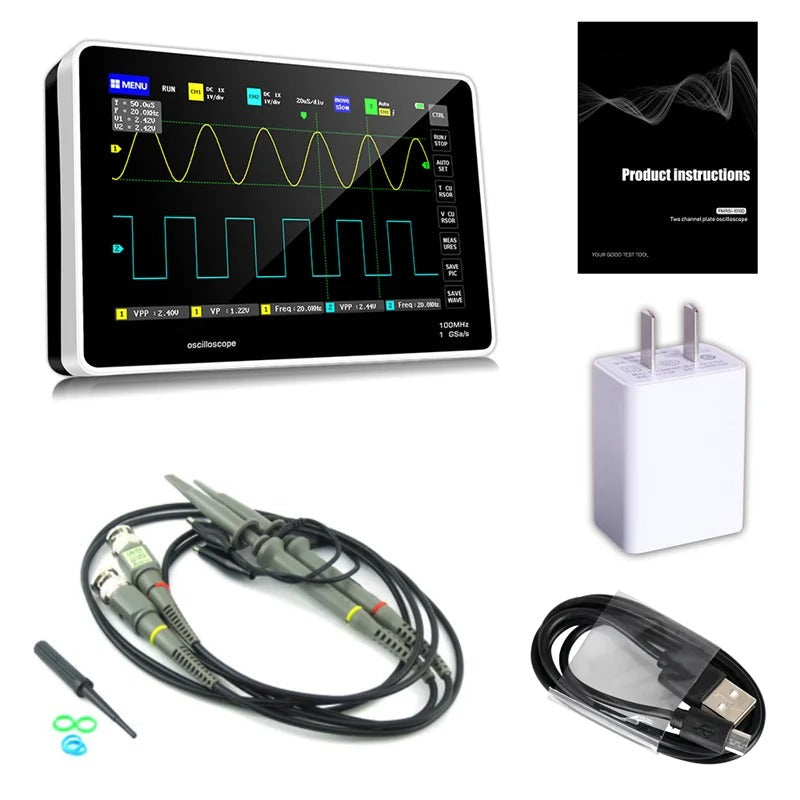

Package Contents:
• 1 × Portable Digital Oscilloscope
• 2 × 100MHz Test Probes (1X / 10X)
• 1 × USB Data Cable
• 1 × Power Adapter
