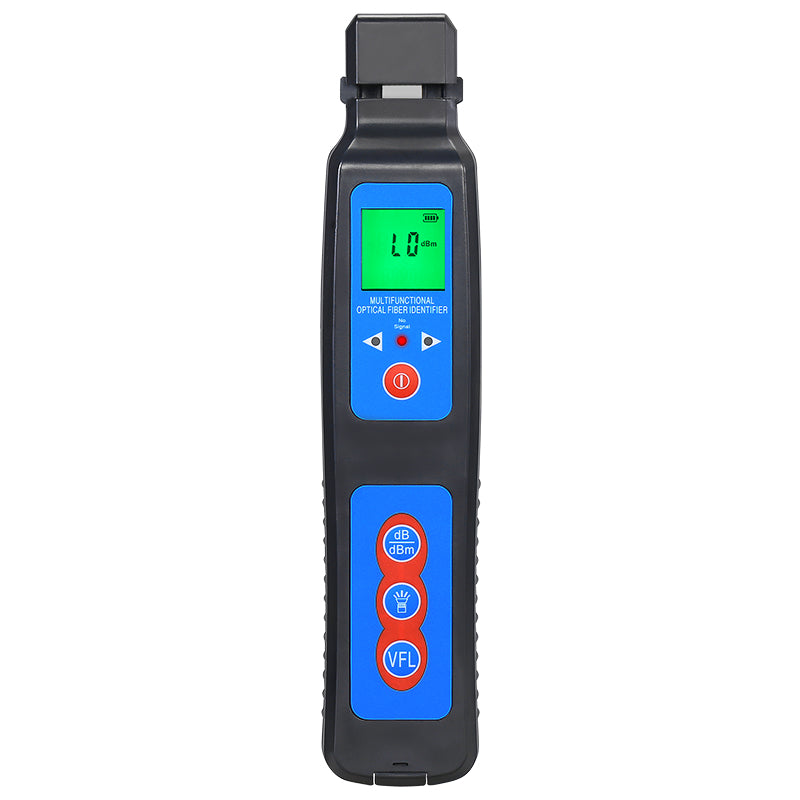

Engineered for FTTH installations and professional fiber servicing, this portable optical fiber identifier allows technicians to safely detect active optical signals without interrupting network connections. It enables quick confirmation of signal direction, identification of live fibers, and recognition of common modulation frequencies during field operations.
Equipped with an integrated 10mW visual fault locator and clear LED status indication, the device simplifies cable tracing, break detection, and on site diagnostics. Its compact handheld design ensures convenient handling, making it suitable for maintenance teams and telecom technicians working in demanding environments.
Key Features:
• Non intrusive detection of active fiber signals
• Signal direction recognition for faster fault isolation
• Compatible with 270Hz 1000Hz and 2000Hz modulation tones
• Integrated 10mW visual fault locator for fault tracing
• Supports wide wavelength range from 800nm to 1700nm
• Compact lightweight structure for easy field portability
• 4 in 1 universal clamp suitable for multiple fiber types
Specifications:
• Product Type: Handheld fiber signal identifier
• Operating Wavelength: 800nm to 1700nm
• Detectable Frequencies: 270Hz 1000Hz 2000Hz
• Visual Fault Locator Power: 10mW
• Fiber Adapter: 4 in 1 universal fixture
• Power Source: Two AA batteries
• Construction Material: Durable plastic housing
• Dimensions: 26cm x 8cm x 7cm
Package Content:
• 1 x Optical Fiber Identifier Tool
