Key Features:

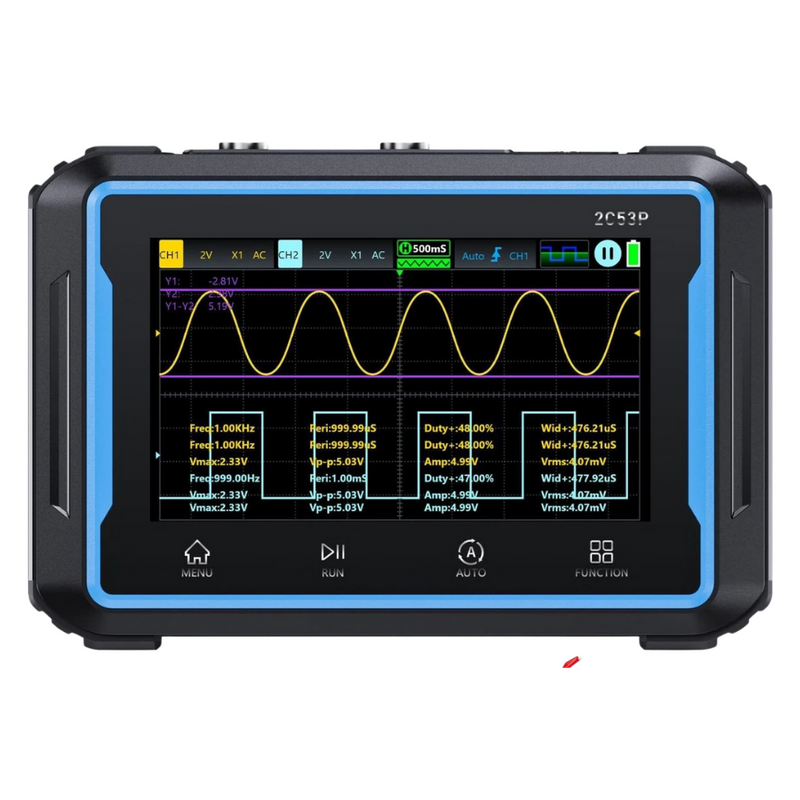

• Integrated oscilloscope, digital multimeter, and signal generator in one handheld unit
• Two 50MHz channels with 250MS/s sampling performance
• 4.3" color touch screen with 480×272 resolution for easy control and clear readings
• Measures voltage, current, resistance, capacitance, temperature, diode, and continuity
• Built-in DDS signal output with 12 selectable waveform types up to 10MHz
• Adjustable signal amplitude from 0.1V to 3.0V with configurable duty cycle (0–100%)
• High-voltage protection with ±400V peak measurement capability
• Advanced tools including FFT spectrum analysis, mathematical operations, waveform save function, and USB data transfer
• Powered by a 4000mAh rechargeable lithium battery providing up to 4 hours of operation
• Lightweight and travel-friendly design suitable for workshop, field service, and classroom environments
Specifications:
• Bandwidth: 50MHz (Dual Channel)
• Sampling Rate: 250MS/s
• Display: 4.3" Touchscreen, 480×272 resolution
• Storage Depth: 64kByte
• Input Impedance: 1MΩ
• Vertical Sensitivity: 10mV/div – 10V/div
• Time Base Range: 10ns/div – 10s/div
• Max Voltage: ±400V
• Signal Generator Frequency: 0–10MHz (Sine), 0–5MHz (Other)
• Output Amplitude: 0.1V–3.0V
• Battery: 4000mAh rechargeable lithium
• Power Supply: USB-C 5V/2A
• Dimensions: 145 × 98 × 35 mm
• Weight: 360 g
Package Contents:
• 1 × 3-Function Digital Test Meter Unit
• 2 × 50MHz Oscilloscope Probes
• 1 × Multimeter Test Lead
• 1 × Alligator Clip Lead
• 1 × USB Data Cable
• 1 × User Manual
