Description
Designed for engineers, technicians, and electronics enthusiasts, this compact handheld device brings together professional-grade signal testing and waveform generation in one powerful tool. Whether you’re troubleshooting circuits in the field or working on precision bench tasks, this all-in-one oscilloscope delivers fast data capture, sharp display clarity, and reliable performance in a portable form factor.
Key Features
All-in-One Testing Tool:

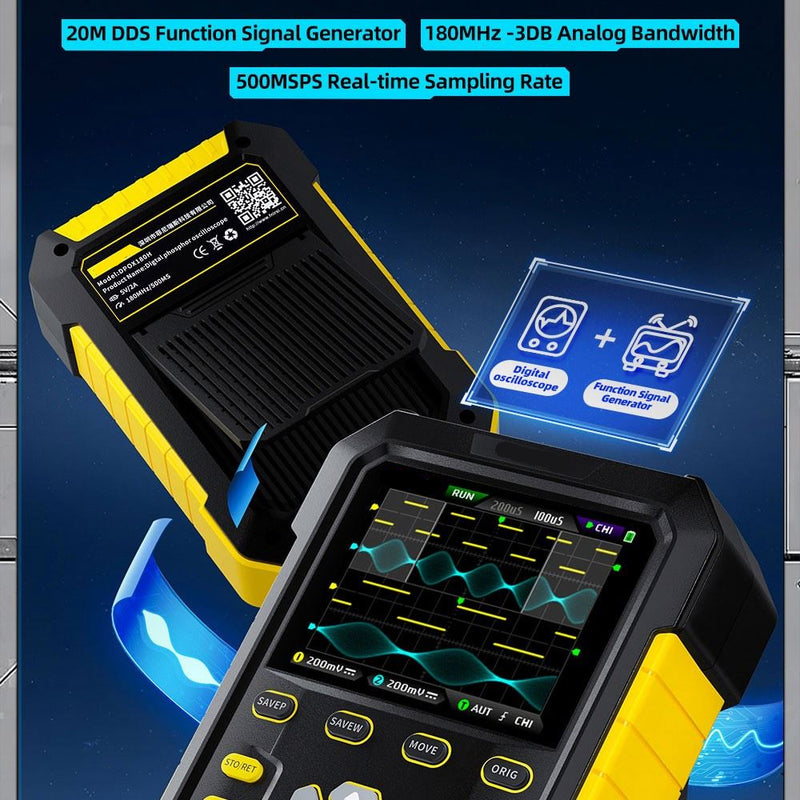

Integrates a high-performance digital phosphor oscilloscope with a built-in 20MHz signal generator, eliminating the need for multiple devices.
Fast & Accurate Performance:
Features an ultra-high 500MSPS sampling rate to ensure precise signal tracking and dependable waveform results.
Clear IPS Screen:
Equipped with a 2.8-inch IPS LCD that provides wide viewing angles and crisp waveform visibility in any working environment.
Flexible Trigger Options:
Supports automatic, single, and normal triggering to adapt easily to stable or complex signal measurements.
Advanced Signal Output:
Offers 14 preset waveform types along with memory for custom user-created signals.
Enhanced Safety Protection:
Engineered with robust input protection, safely handling voltages up to 400V across all measurement ranges.
Save & Share Data:
Allows internal storage of up to 250 waveform records or 90 screen images, with USB connectivity for easy data transfer.
Long-Lasting Power:
Powered by an internal 3000mAh rechargeable battery, providing up to 4 hours of continuous operation on a single charge.

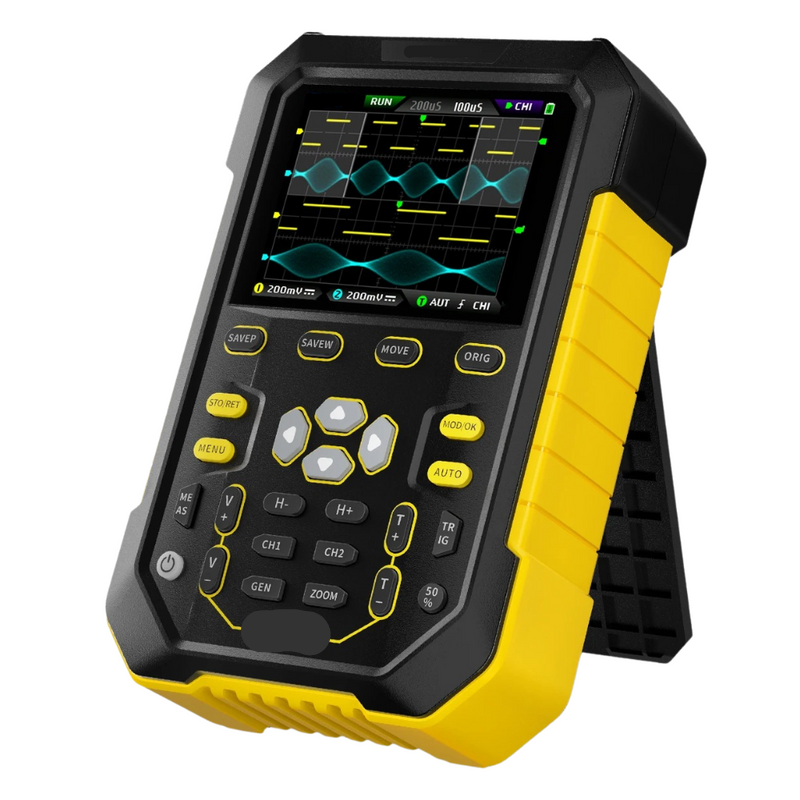

Compact & Mobile Design:
Ergonomic, lightweight construction makes it ideal for mobile diagnostics, repairs, and lab use.
Specifications
Analog Bandwidth: 180MHz
Sampling Rate: 500MSPS
Channels: 2
Display: 2.8" IPS, 320 × 240 resolution
Vertical Sensitivity: 5mV–10V (1X)
Time Base Range: 5nS–50S
Input Impedance: 1MΩ / 18pF
Rise Time: 1.8nS
Trigger Modes: Auto / Single / Normal
Battery: 3000mAh rechargeable
Charging: 5V-2A fast charging (80% in approx. 1 hour)
Dimensions: 135 × 90 × 40mm

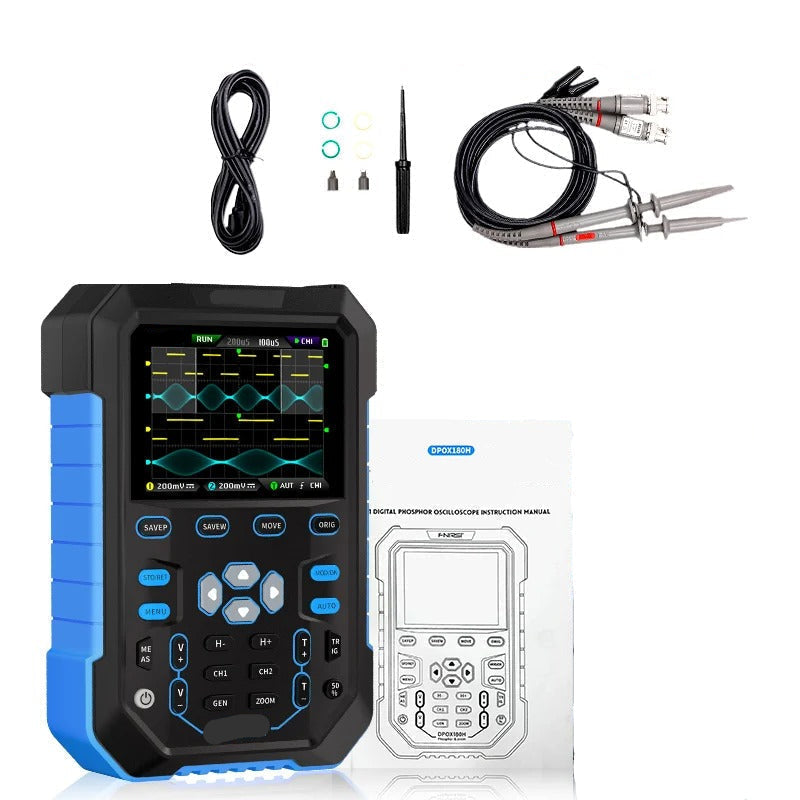

Package Contents
1 × Digital Phosphor Oscilloscope (multi-language interface)
2 × 200MHz Probes (1X & 10X)
1 × 5V-2A Power Adapter
1 × USB Data Cable
1 × User Manual
