Description

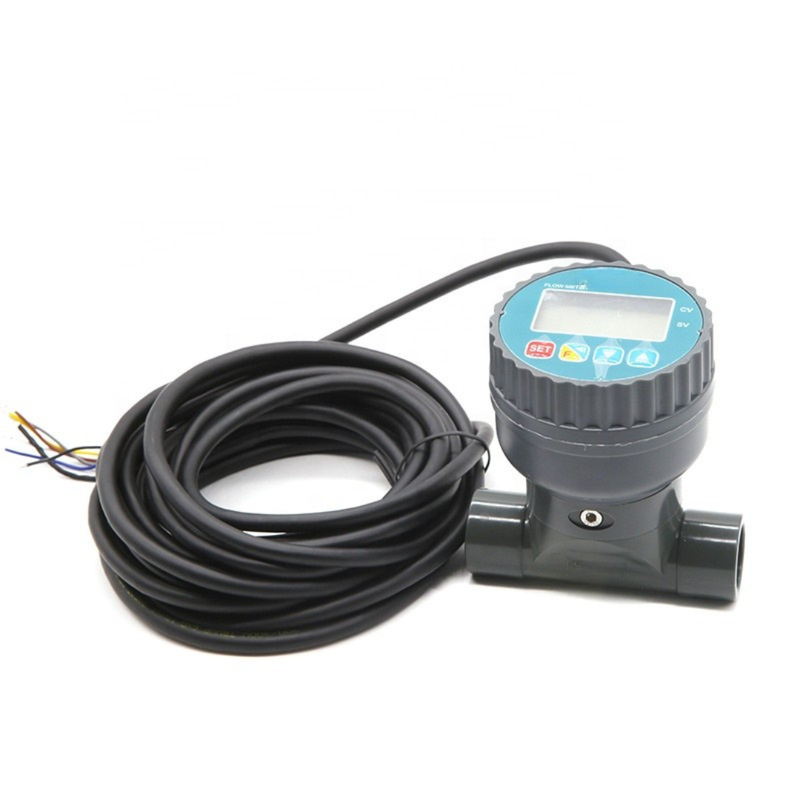

This PVC turbine flow meter is designed for precise measurement of liquid flow in industrial, commercial, and applications. Built with durable UPVC housing, it supports multiple output modes including RS485, 4–20mA, and pulse signals, allowing seamless integration into automated systems. The device handles flow rates between 10–150L/min with total measurements up to 999,999 units. Its compact design and versatile pipe connections make installation straightforward, while the robust construction ensures reliable performance under pressures up to 5kg/cm² and operating temperatures from -10℃ to 70℃.

Key Features:

• Accurate flow measurement with ±5% tolerance

• Supports RS485, 4–20mA, and pulse output modes

• Durable UPVC construction for long-lasting use

• Compact design for easy pipe connection and installation

• Suitable for industrial, commercial, and OEM liquid monitoring

• Wide operating voltage: 10–30VDC with maximum 60mA current

Specifications:

• Medium: Fluids

• Flow rate: 10–150L/min

• Pipe connection: Flange/Thread

• Operating voltage: 10–30VDC

• Working current: Max 60mA (DC 30V)

• Pressure tolerance: 5kg/cm²

• Environment temperature: -10℃ to 70℃

• Instantaneous flow output: NPN max 150mA

• Total flow output: NPN max 150mA

• Material: UPVC

Package Contents:

• 1 × Turbine Flow Meter

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
