Description

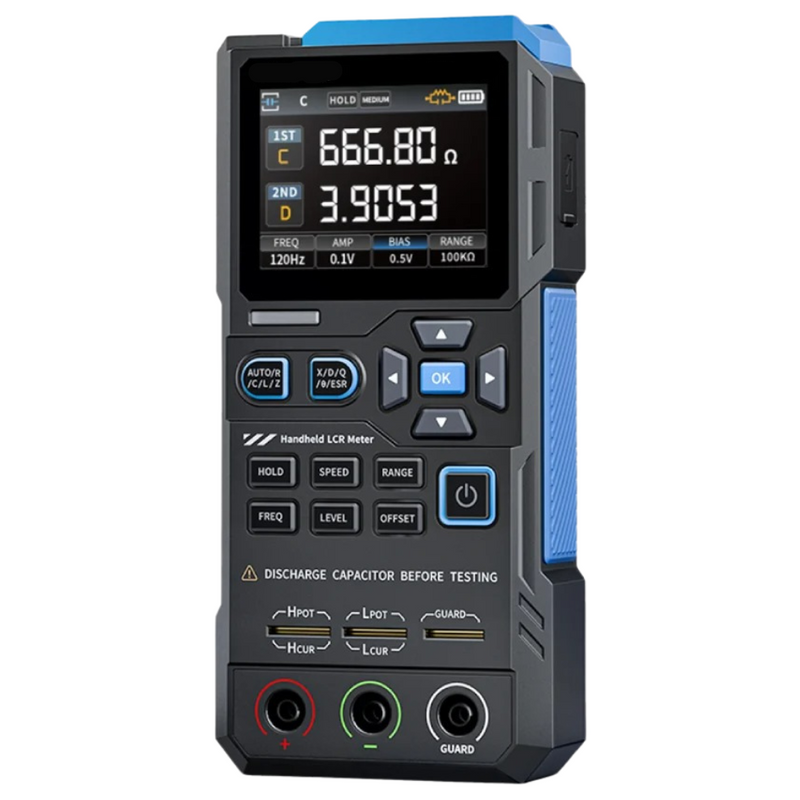

This professional handheld LCR meter is built to deliver reliable testing of electronic components by accurately analyzing resistance, capacitance, and inductance values. Designed for precision-focused users, it supports multiple test frequencies and voltages, making it suitable for circuit diagnostics, component verification, and quality control. Its portable form factor allows easy use in labs, workshops, or on-site inspection tasks while maintaining stable and consistent measurement results.
Key Features
Precisely evaluates resistance, capacitance, and inductance for electronic components
Supports multiple selectable test frequencies for versatile measurement scenarios

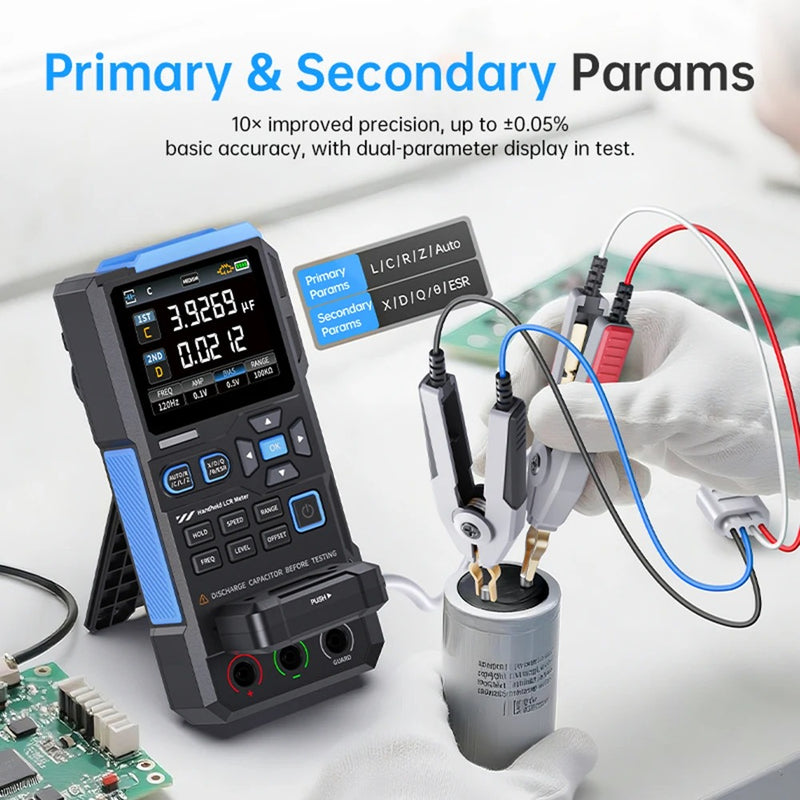

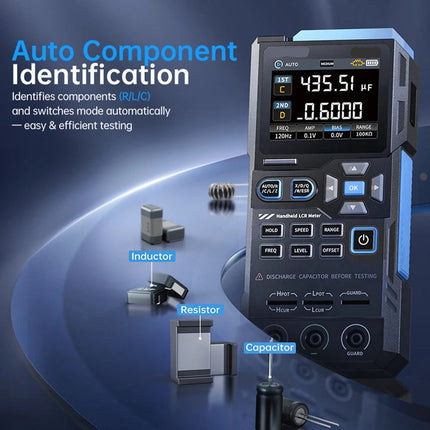

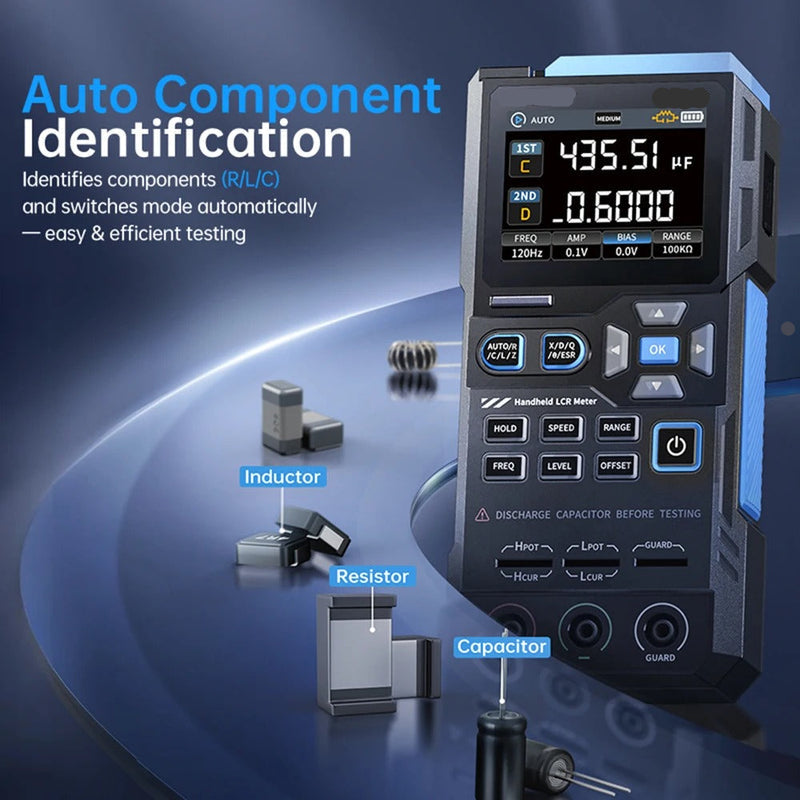

Automatically detects main parameters (R/L/C/Z) along with secondary values such as ESR, Q, D, X, and phase angle
Adjustable test voltage options allow better control when testing sensitive components
Open and short calibration modes help maintain dependable measurement performance over time
Compact handheld construction enables easy transport and convenient field operation
Built-in recording and comparison functions improve testing efficiency and result analysis
Specifications
Measurement Range:
Inductance (L): 0–100H
Capacitance (C): 0–100mF
Resistance (R): 0–10MΩ
Test Frequency: 100Hz / 120Hz / 1KHz / 10KHz / 100KHz
Test Voltage Levels: 0.1V, 0.3V, 0.6V

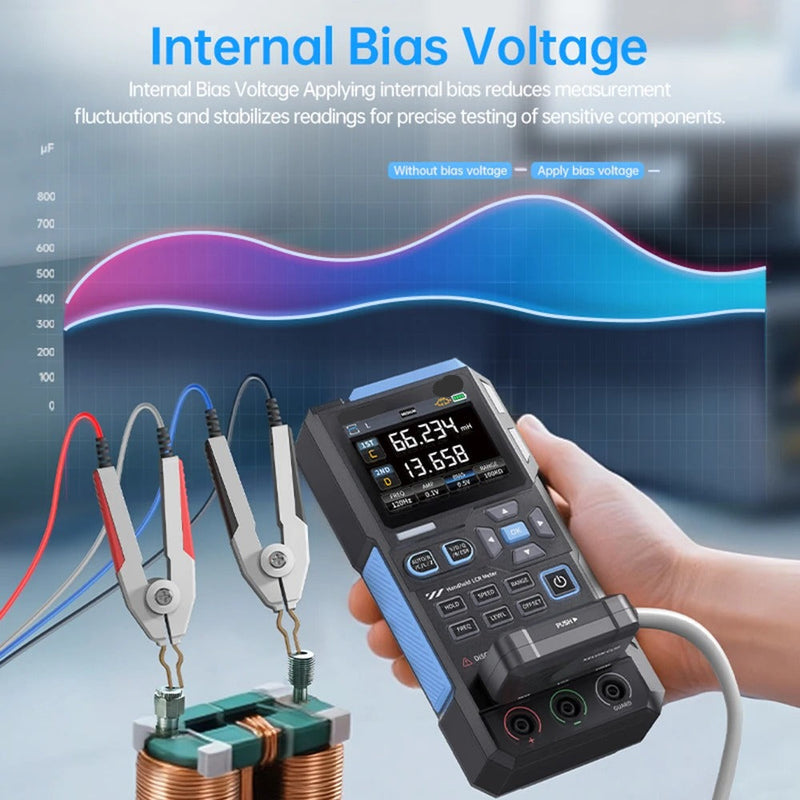

Internal Bias: 0.0V, 0.5V
Calibration Modes: Open circuit and short circuit
Weight: 0.68 kg

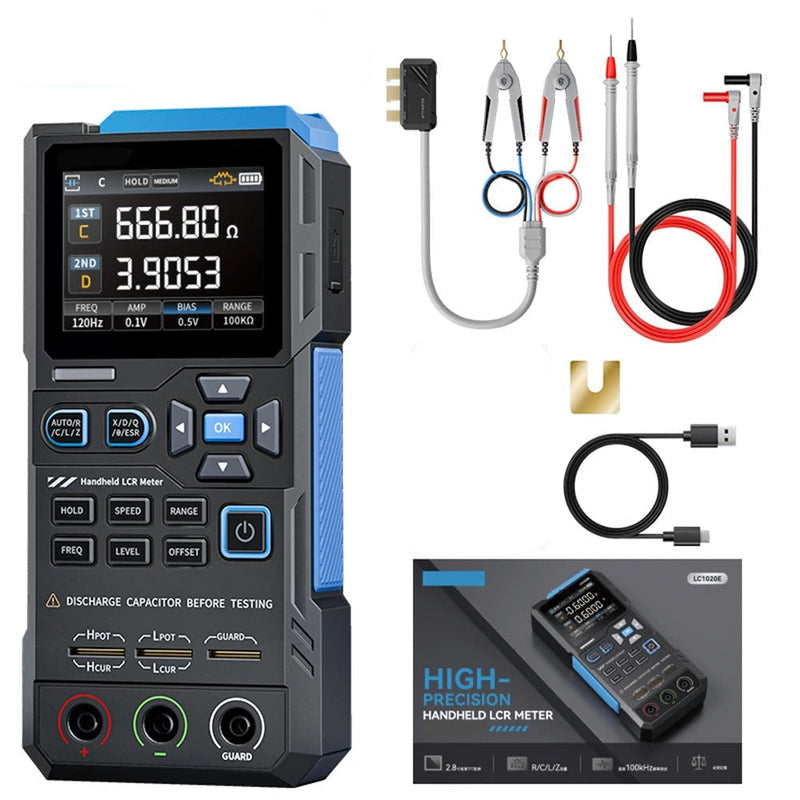

Package Contents
1 × Digital LCR Meter
1 × Test Lead Set
1 × User Manual
