Description

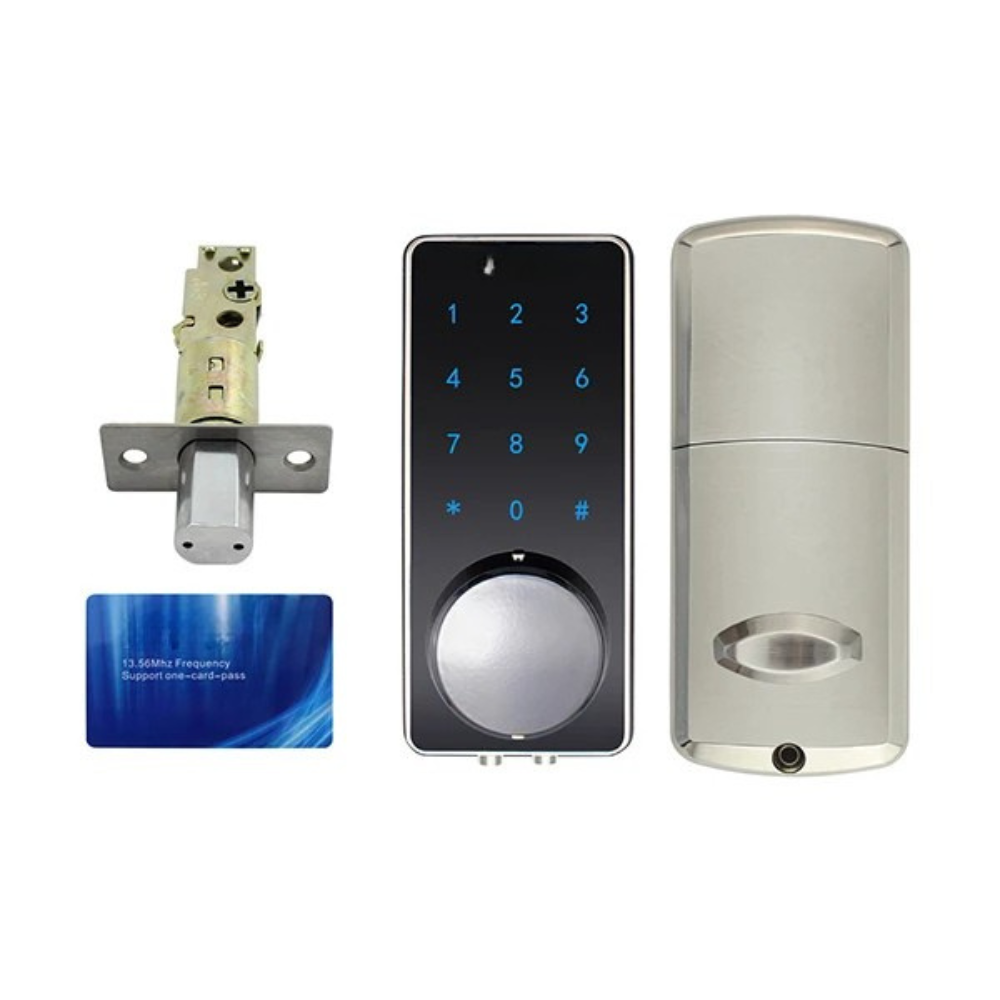

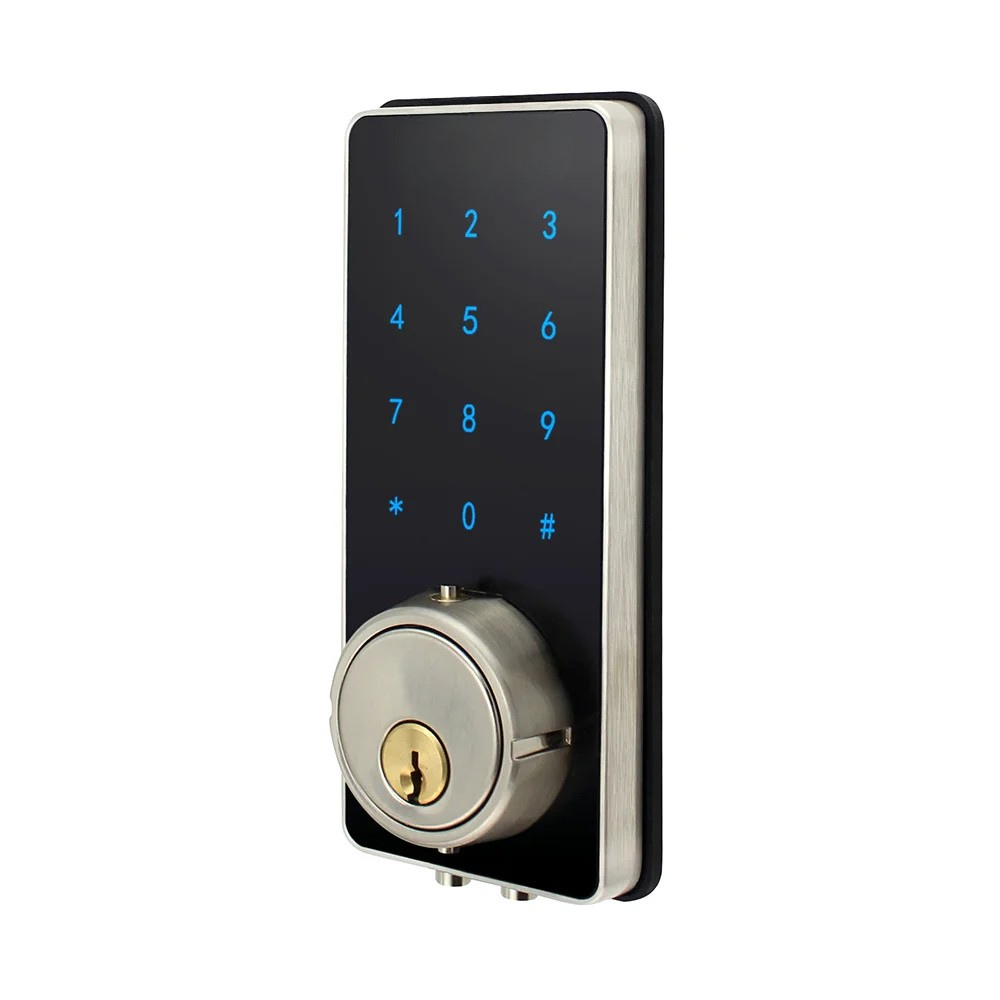

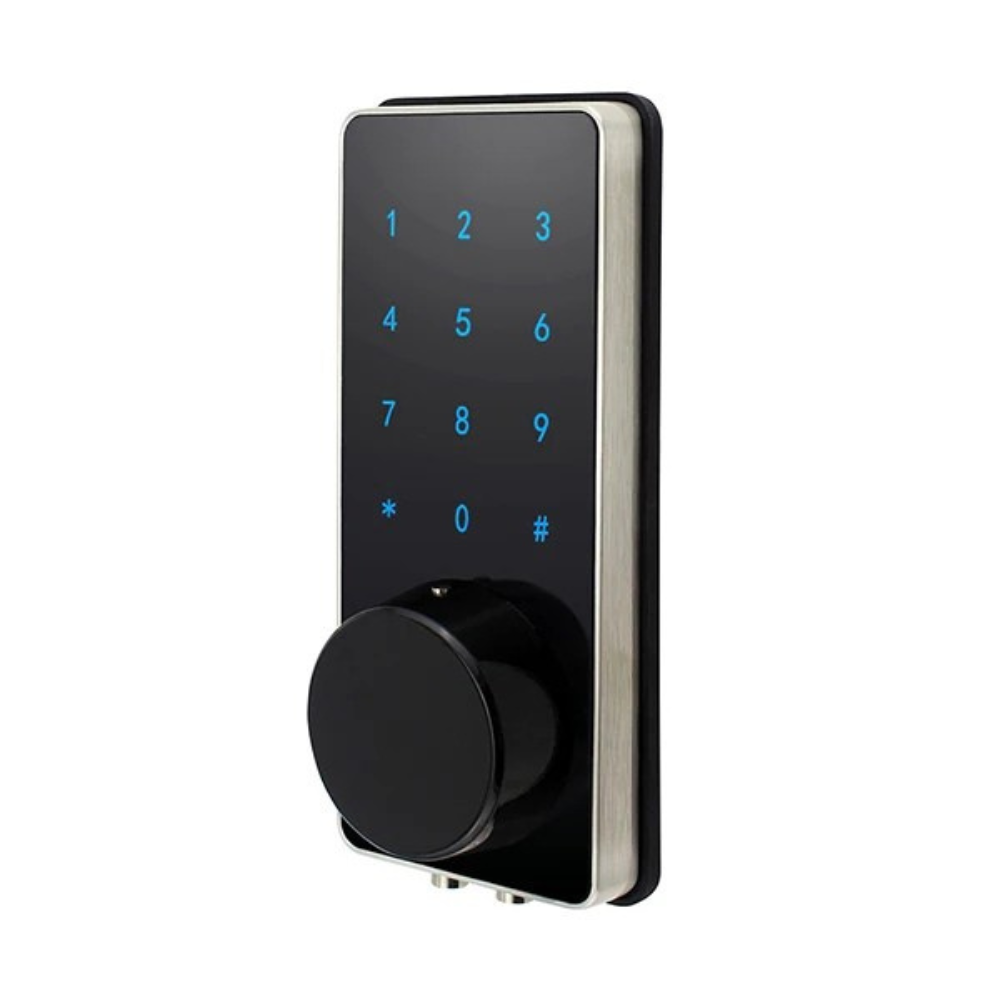

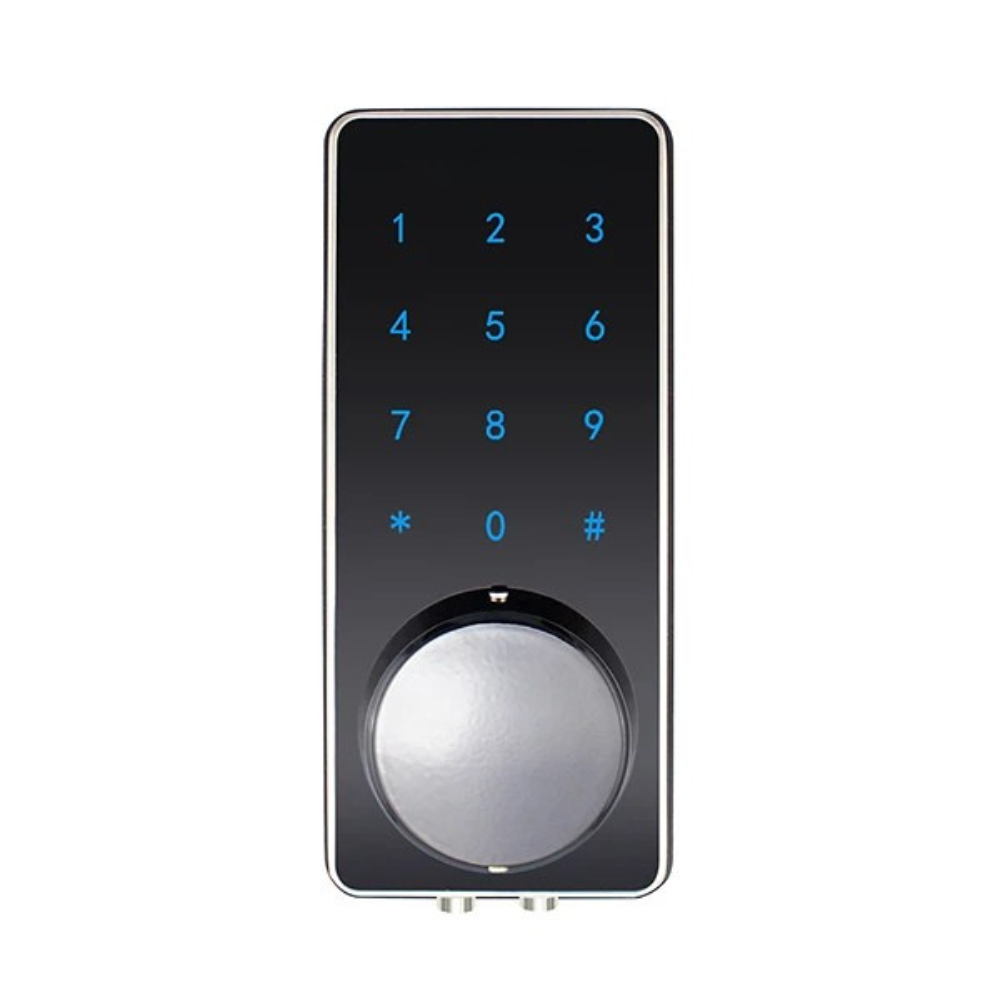

Upgrade a suitable door with this electronic digital door lock, designed to provide multiple access options for everyday residential or office use. The lock supports touchscreen password entry, Mifare One card access and a mechanical key, with an optional TT Lock or TUYA APP Bluetooth version available depending on the selected configuration. Its adjustable backset accommodates different door setups, while the zinc alloy casing provides a practical construction. The lock supports up to 130 user IDs and operates using four AA alkaline batteries, with an additional 9V battery connection available as an external power option.

Key Features:

• Multiple unlocking methods including touchscreen password, Mifare One card and mechanical key
• Optional TT Lock or TUYA APP Bluetooth version available
• Password length supports 4–8 digits
• Supports up to 130 user IDs
• Adjustable 60–70 mm backset
• Suitable for doors with a thickness of 35–55 mm
• Zinc alloy metal casing
• Card reading distance of approximately 3–5 cm
• Low quiescent current of ≤30uA
• Working current of ≤200mA
• Powered by 4 AA alkaline batteries
• Additional 9V battery connection available for external power

Specifications:

• Material: Zinc Alloy
• Card Type: Mifare One
• Unlocking Methods: Touchscreen Password, Card, Password + Card, Mechanical Key
• Password Length: 4–8 Digits
• Default Code: 123456
• User Capacity: 130
• User ID Range: 001–130
• Power Supply: 4 x AA Alkaline Batteries
• Working Voltage: 4.8–6.5V
• Additional Power: 9V Battery Connection
• Quiescent Current: ≤30uA
• Working Current: ≤200mA
• Door Thickness: 35–55 mm
• Backset: 60 or 70 mm, Adjustable
• Card Reading Distance: 3–5 cm
• Lock Dimensions: 60 x 29 x 173 cm
• App Options: TT Lock or TUYA APP Bluetooth Version, depending on variant

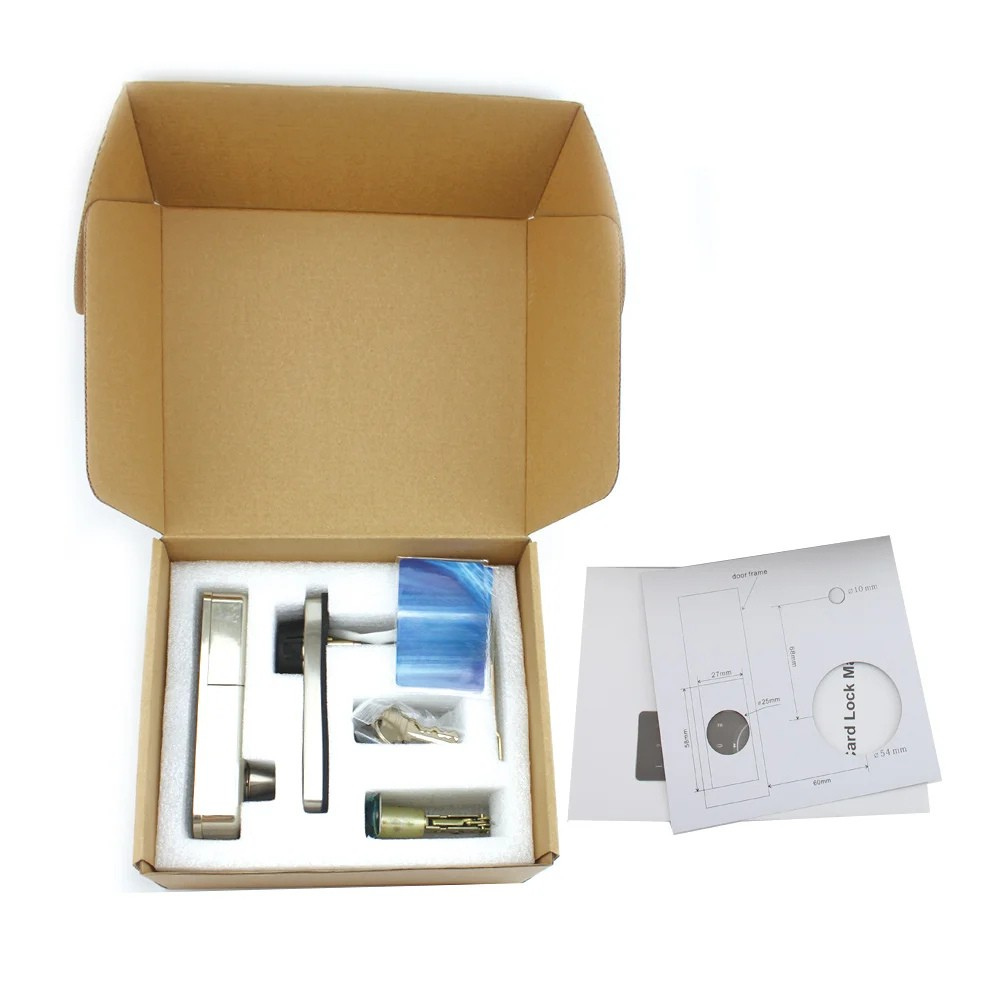

Package Contents:

• Door Lock

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
