Description

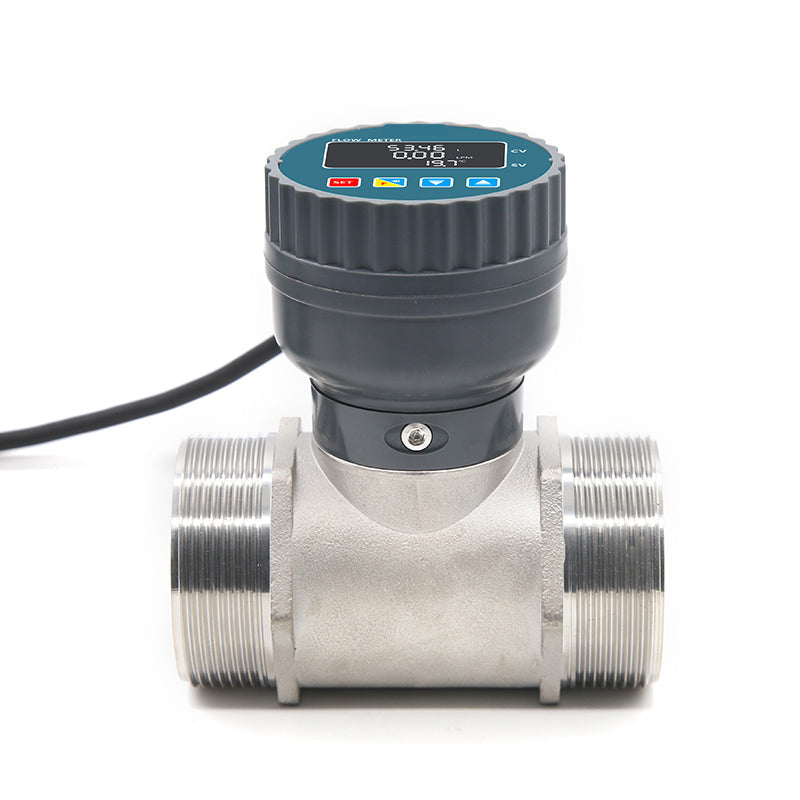

This stainless steel paddle wheel flow meter is designed for accurate liquid flow monitoring and quantitative control in industrial and commercial water systems. It provides real-time flow rate data along with cumulative total flow tracking via a clear LCD display. Built for stable and consistent performance, the durable stainless steel housing supports reliable operation in demanding environments. With threaded installation and dual NPN output modes for instantaneous and total flow control, this unit integrates easily into existing fluid management systems requiring precise measurement and monitoring.

Key Features:

• Paddle wheel design for accurate and stable liquid flow measurement
• LCD screen displaying real-time and cumulative flow data
• Wide flow rate range suitable for varied water system applications
• Stainless steel construction for durability and corrosion resistance
• Threaded connection for secure installation
• Dual NPN outputs for instantaneous and total flow control

Specifications:

• Flow rate range: 60–1100 L/min
• Instantaneous flow range: 0–999.99 LPM
• Total flow range: 0–999999 FTM
• Measurement range: 0–999999
• Operating voltage: 10–30V DC
• Working current: Max 60mA at DC30V
• Control output: NPN (max 150mA)
• Water pressure rating: 5 kg/cm²
• Operating temperature: -10°C to 70°C
• Material: Stainless steel
• Connection type: Threaded

Package Contents:

• 1 x Stainless Steel Paddle Wheel Flow Meter Unit

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
