Description

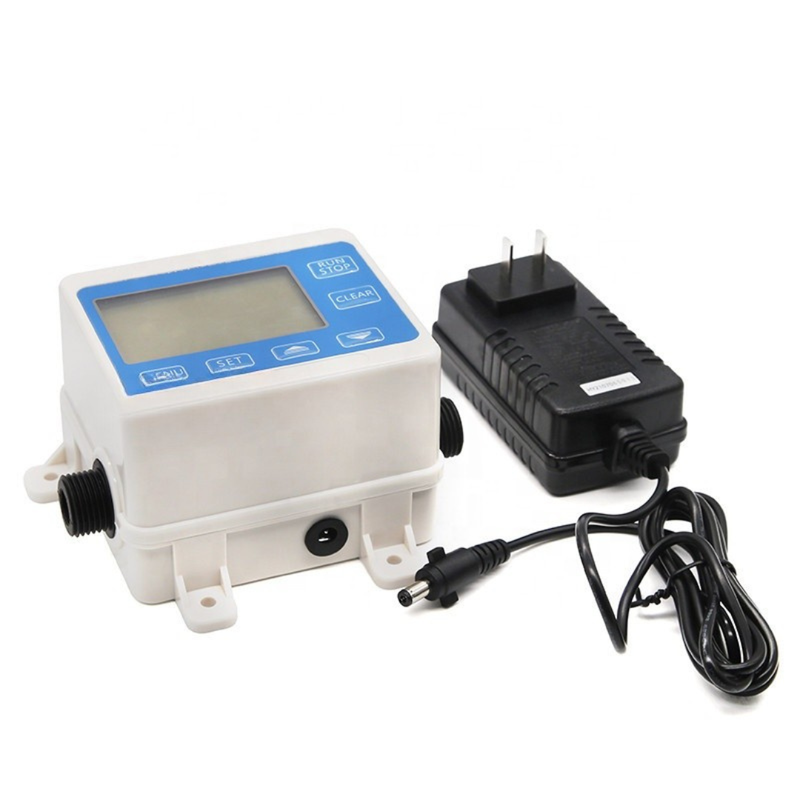

This automatic water flow meter is designed for precise quantitative control of water tank filling in residential and industrial systems. Featuring an integrated DC-controlled valve, it enables automatic stop and fill functionality for improved water management. The 1/2 inch inlet and outlet design allows easy installation into standard piping systems. With a flow measurement range of 1–30 litres per minute and a total quantitative range of 0.1–9999 litres, this unit provides accurate monitoring and controlled water distribution across various applications.

Key Features:

• Automatic stop and fill function for controlled water tank operation
• Flow range of 1–30 L/min for adjustable water measurement
• Quantitative range from 0.1 to 9999 litres for precise volume control
• Integrated DC 24V valve for seamless automated operation
• Durable construction with wide temperature compatibility

Specifications:

• Operating voltage: DC 24V ±8V / 1A
• Inlet & outlet diameter: G1/2 inch
• Flow range: 1–30 L/min
• Quantitative range: 0.1–9999 L
• Temperature range: -20 to 100°C
• Maximum water pressure: under 1.2 MPa
• Meter type: Multi-jet, compound, turbine, electromagnetic, prepaid water meter

Package Contents:

1 x White flow meter with integrated valve

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
