Description

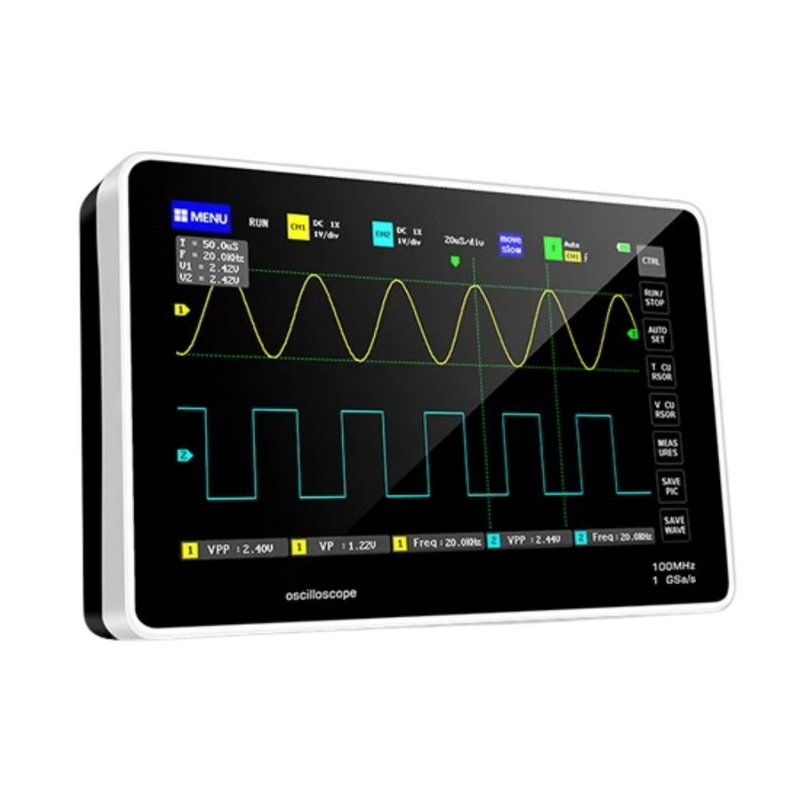

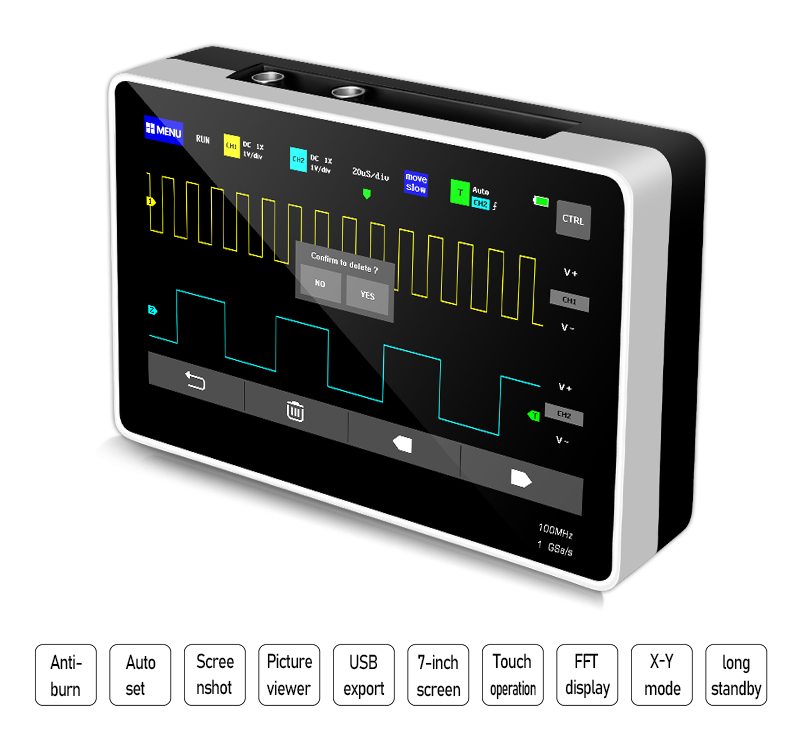

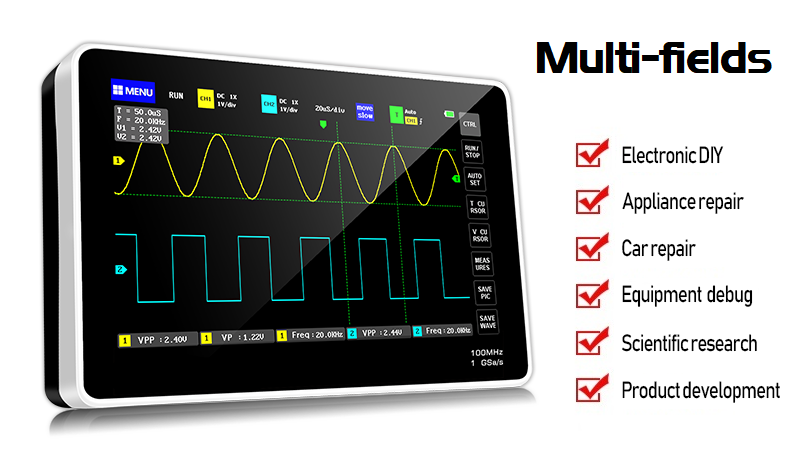

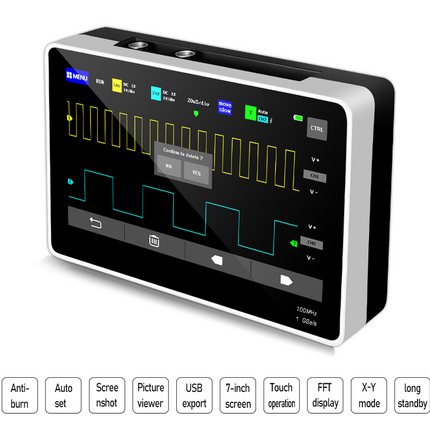

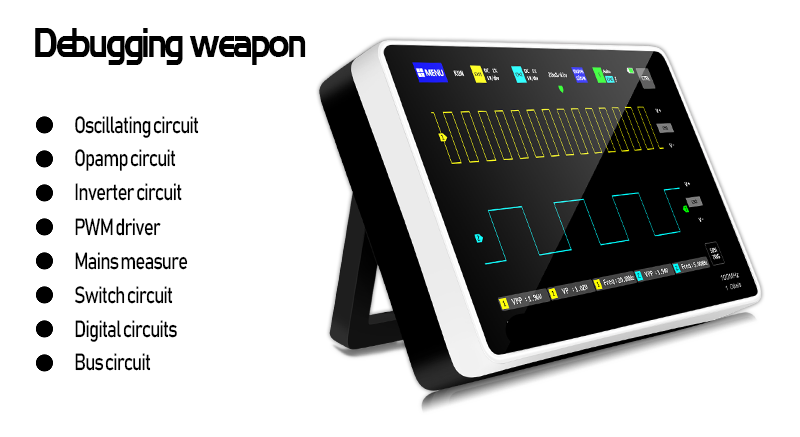

Designed for accurate signal testing and real-time waveform diagnostics, this 7-inch handheld digital oscilloscope combines portability with advanced performance. Built in a tablet-style format, it delivers dependable measurements for engineers, technicians, laboratories, and field service applications. With fast sampling capability and dual-channel input, it ensures smooth and detailed waveform capture wherever you work.
Key Features:
• Two input channels with 100MHz bandwidth for simultaneous signal comparison
• Real-time sampling rate of 1GSa/s for accurate waveform reproduction
• 7-inch TFT LCD display (800×480) with touch control for intuitive operation
• Supports up to 400V input when using a 10X probe
• Automatic measurement of 12 parameters including frequency, voltage, and duty cycle
• FFT analysis and Lissajous mode for spectrum and phase relationship observation
• Internal 1GB storage capable of saving up to 1000 waveform images
• USB interface for transferring data to a computer
• Powered by a 6000mAh rechargeable lithium battery (up to 4 hours runtime)
• Rugged ABS construction built for lab and field environments
• Adjustable grid and screen brightness for improved visibility in various lighting conditions
Specifications:
• Bandwidth: 100MHz (Dual Channel)
• Sampling Rate: 1GSa/s
• Display: 7-inch TFT LCD (800×480 resolution)
• Voltage Range: 1X: 0–40V / 10X: 0–400V
• Storage Depth: 240Kbit
• Input Resistance: 1MΩ
• Coupling Modes: AC/DC
• Trigger Edge: Rising / Falling
• Battery Capacity: 6000mAh (Rechargeable, removable)
• Dimensions: 184 × 124 × 50 mm
• Weight: 986 g
• Material: ABS

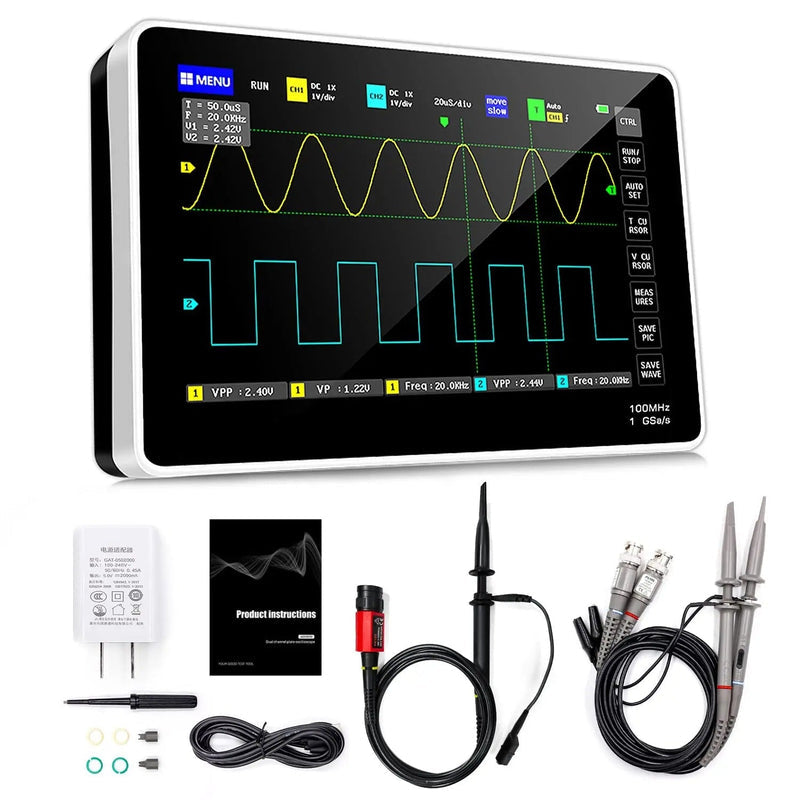

Package Contents:
• 1 × Digital Oscilloscope
• 2 × 100MHz Probes (1X and 10X)
• 1 × USB Cable
• 1 × Charging Adapter
