Description

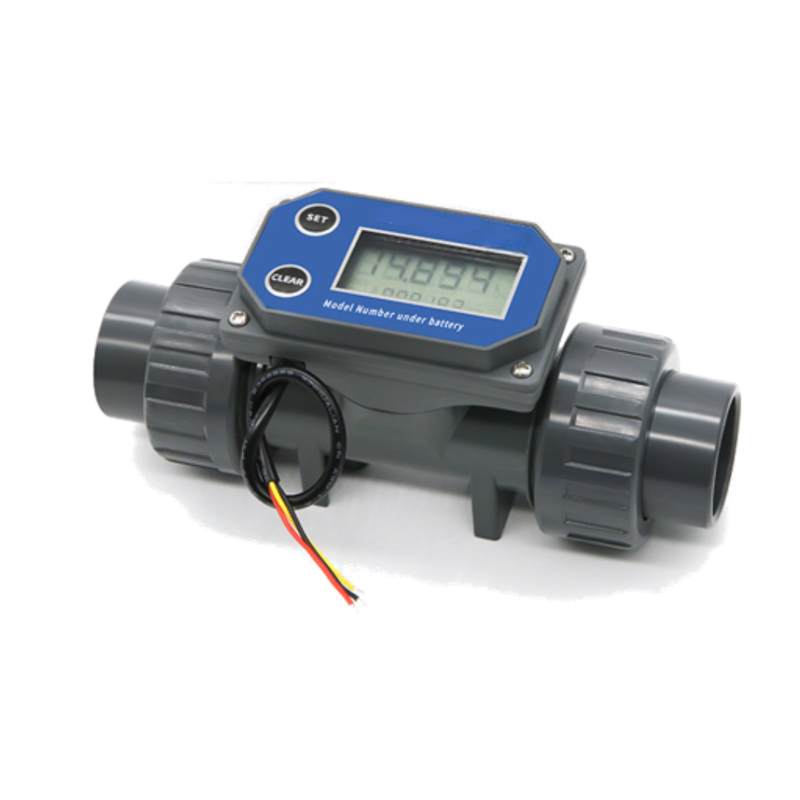

This 40mm digital water flow meter is designed for accurate measurement of water flow in industrial, agricultural, or commercial systems. Featuring an electronic turbine design and a wide flow range of 40–460L/min, it provides clear and precise readings of water usage. The LCD display shows both single and cumulative measurements in multiple units including liters, cubic meters, and gallons. Compact and durable, the flow meter is easy to install with threaded and union fittings, and it supports flexible power options including battery or 5–24V DC supply, making it a versatile addition to water monitoring setups.
Key Features:
• Accurate water flow measurement with ±5% precision
• Wide flow range from 40–460L/min
• LCD display shows single and cumulative measurements
• Compact PVC body suitable for various water systems
• Supports multiple units: L, m³, GAL, QTS
• Repeatability ±0.5% for consistent readings
• Easy installation with threaded and union fittings
• Operates with battery or 5–24V DC power supply
Specifications:
• Connection diameter: 40mm PVC
• Flow rate: 40–460L/min
• Accuracy: ±5%
• Repeatability: ±0.5%
• Maximum pressure: 20 Bar
• Measurement range: 0–999,999
• Measurement units: QTS / m³ / L / GAL
• Medium: Water
• Type: Variable area electronic turbine flow meter
• Material: PVC
Package Contents:
• 1 × Digital LCD Flow Meter
