Description

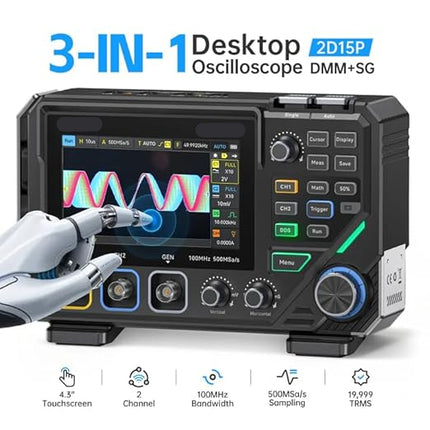

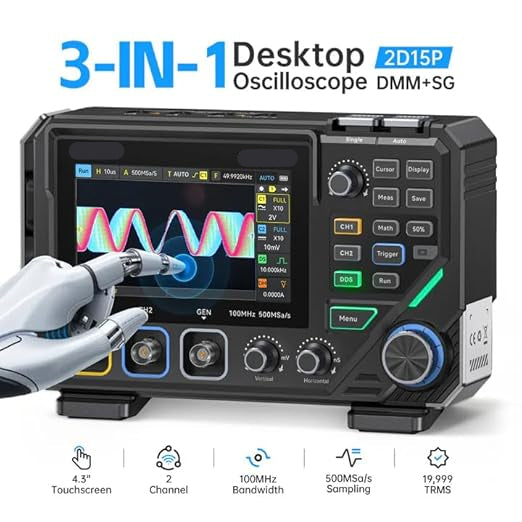

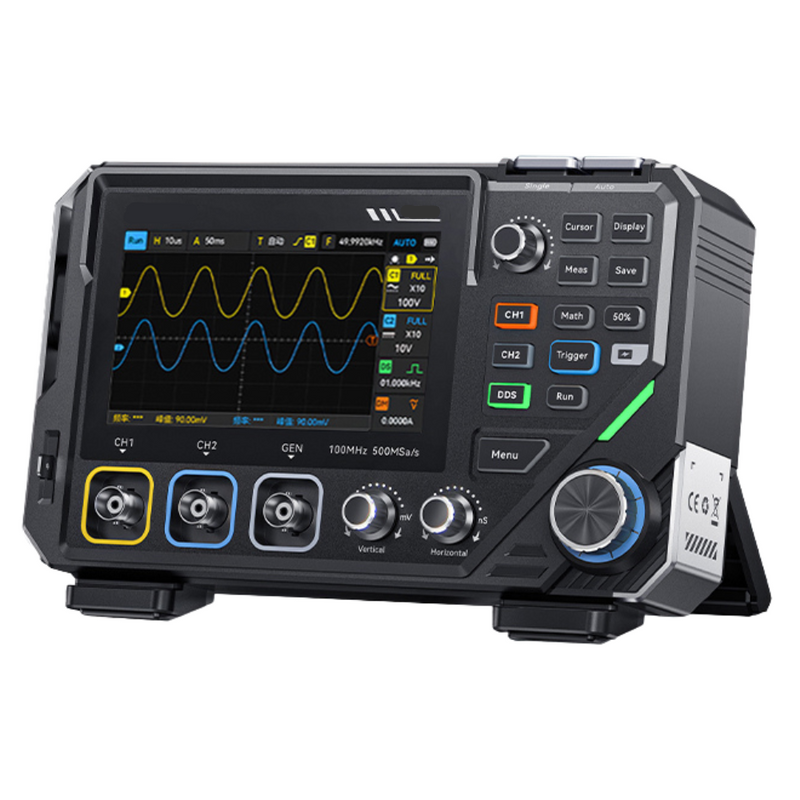

Upgrade your testing setup with this powerful all-in-one bench oscilloscope designed for engineers, technicians, and students. This multifunction device integrates waveform analysis, precision voltage measurement, and signal output capabilities into a single compact desktop instrument, helping you save both space and cost.
Key Features:
• 3-in-1 functionality: oscilloscope, 4.5-digit True RMS multimeter, and integrated signal generator
• Dual-channel operation with 100MHz bandwidth for reliable signal diagnostics
• Real-time sampling speed up to 500MSa/s ensures detailed waveform capture

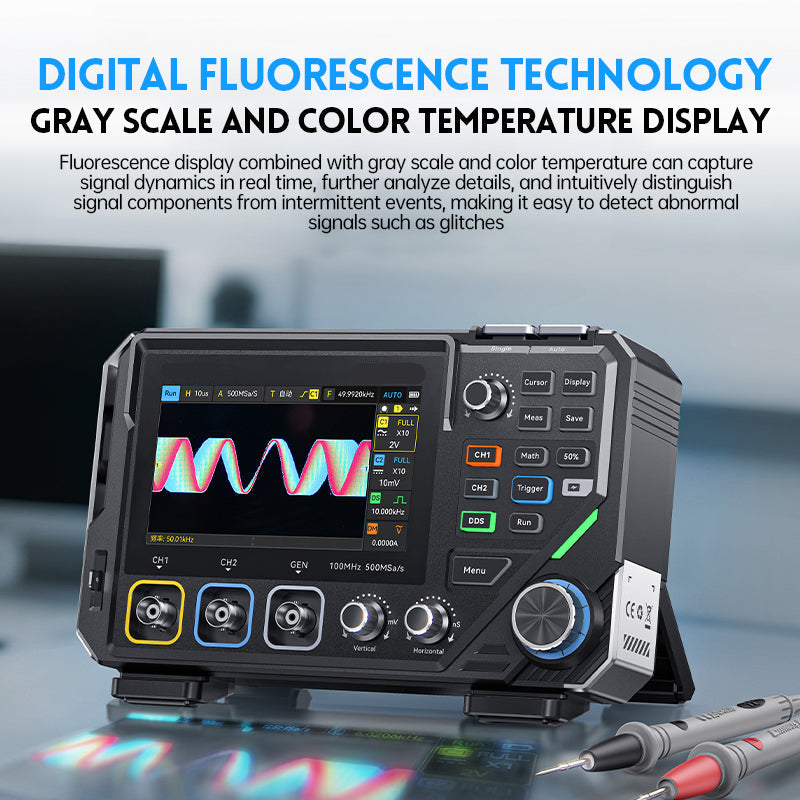

• Bright color screen with selectable waveform display styles (point, vector, and color temperature modes)
• Flexible triggering options including Auto, Normal, and Single modes
• Wide adjustable time base from 5ns to 50s for diverse signal testing scenarios
• 1MΩ input impedance with maximum measurable voltage up to 800V (X10 setting)
• Allows saving of captured waveforms and screen images for documentation

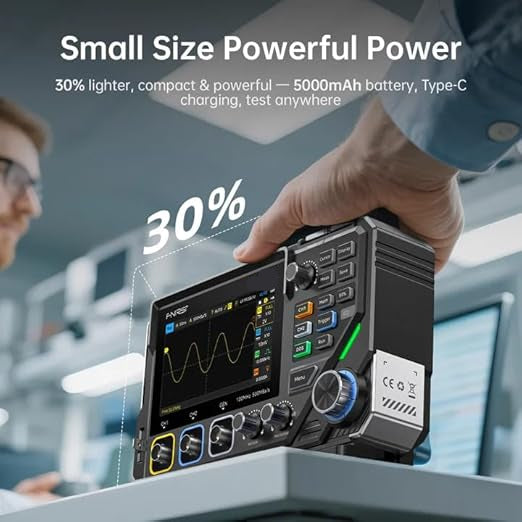

• Space-saving desktop format suitable for repair stations, labs, and training environments
Specifications:
• Bandwidth: 100MHz
• Channels: 2
• Sample Rate: 500MSa/s
• Storage Depth: 10K / 100K / 1M
• Input Impedance: 1MΩ
• Max Voltage: 800V (X10 gear)
• Time Base Range: 5ns – 50s
• Display Modes: Point, Vector, Color Temperature
• Functions: Oscilloscope, 4.5-digit TRMS Multimeter, Signal Generator
• Dimensions: 23.4 × 11 × 17.6 cm

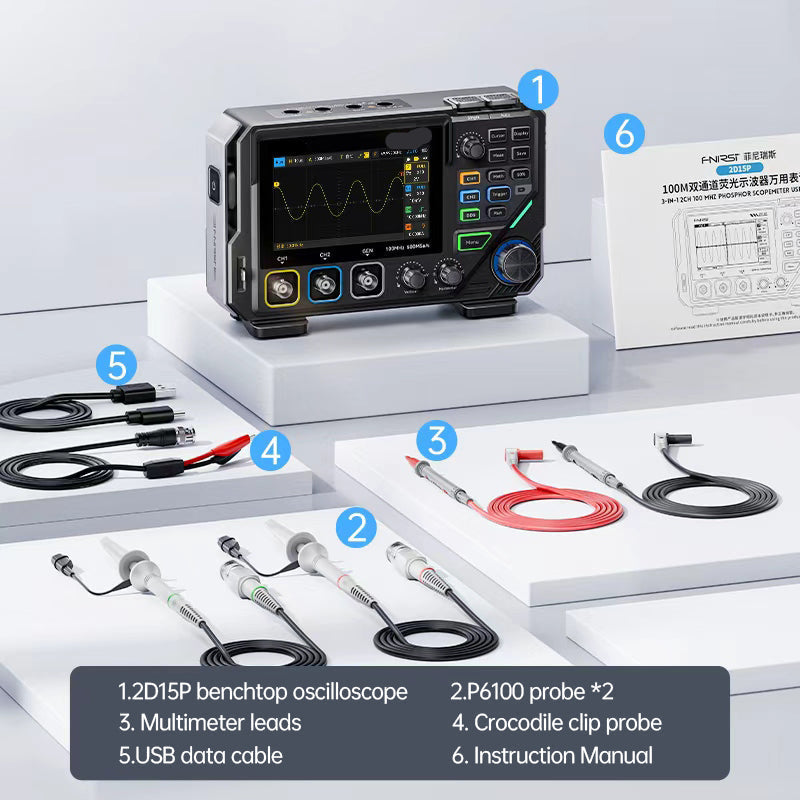

Package Contents:
1 × Digital Oscilloscope with TRMS Multimeter and Signal Generator
