Description

Upgrade your home entry system with this 7" IPS Touch Screen Video Doorbell Intercom System. Designed for clear communication and convenient access control, it allows you to see, speak to, and unlock your door from the indoor monitor or remotely via the mobile app. The 1080P outdoor camera delivers sharp video quality, while infrared night vision ensures clear images even in low light. With RFID card unlocking, pedestrian detection, visitor recording, and multi-language support, this system provides modern control and everyday convenience for residential properties.

Key Features:

• 7" IPS touch screen with 1024×600 resolution for clear viewing

• 1080P 2MP outdoor camera with IR night vision and IR-CUT filter

• Tuya App support for remote call, video, unlock, playback and alerts

• Supports up to 20 users for shared access

• RFID card unlocking (13.56MHz reading zone)

• 2-wire connection with no polarity for easier installation

• Adjustable brightness, contrast, colour and volume

• Visitor record storage and video playback support

• Lock delay adjustment and multi-language OSD menu

• 850nm infrared LEDs for enhanced night visibility

Specifications:

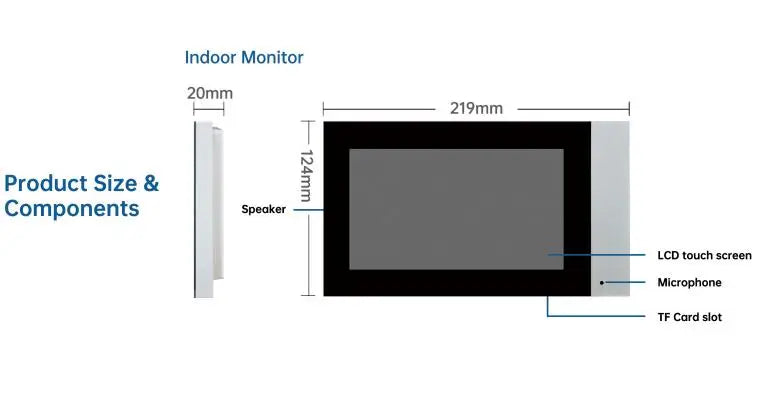

Indoor Monitor:

• Display: 7" IPS Touch Screen

• Resolution: 1024 × 600

• Dimensions: 219 × 124 × 20mm

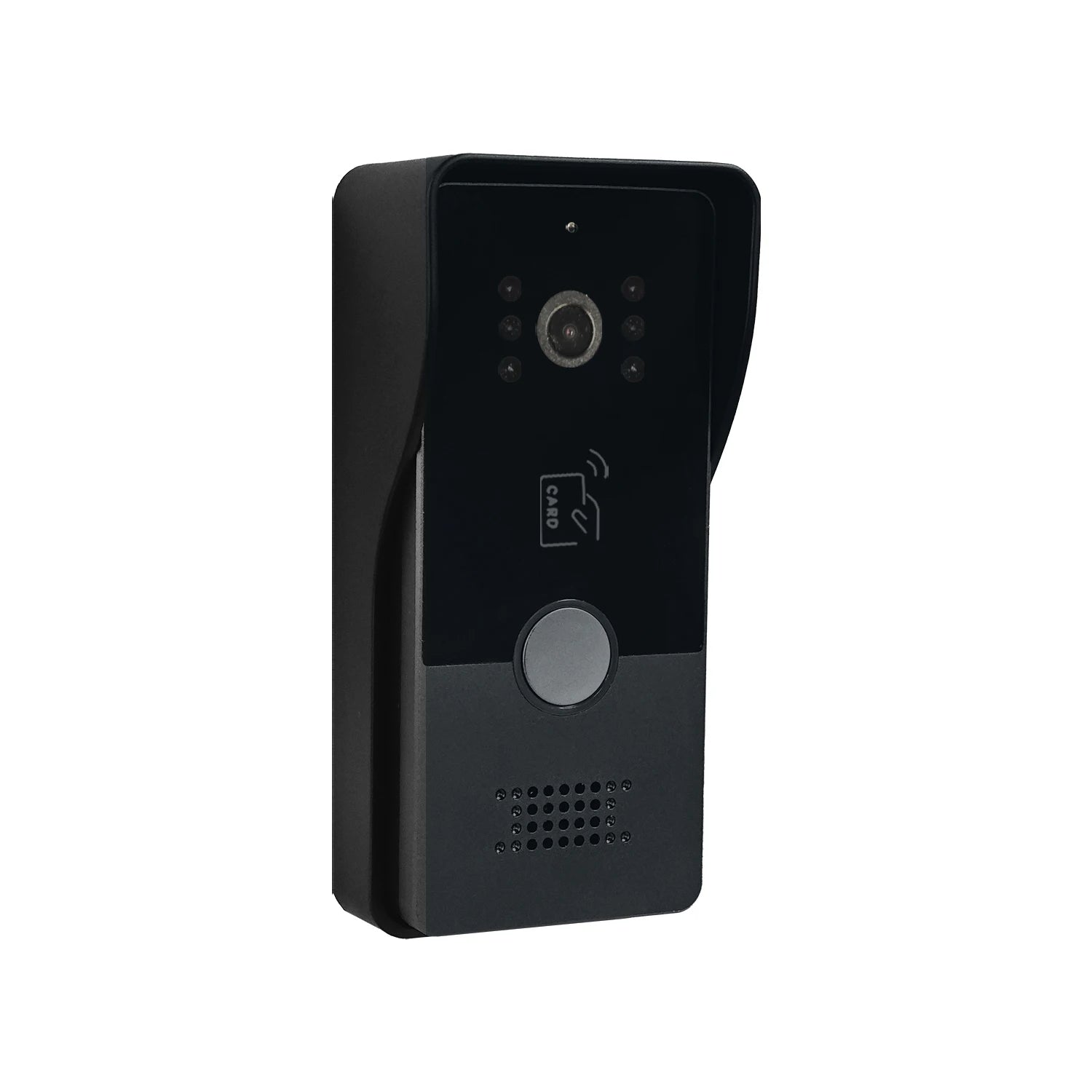

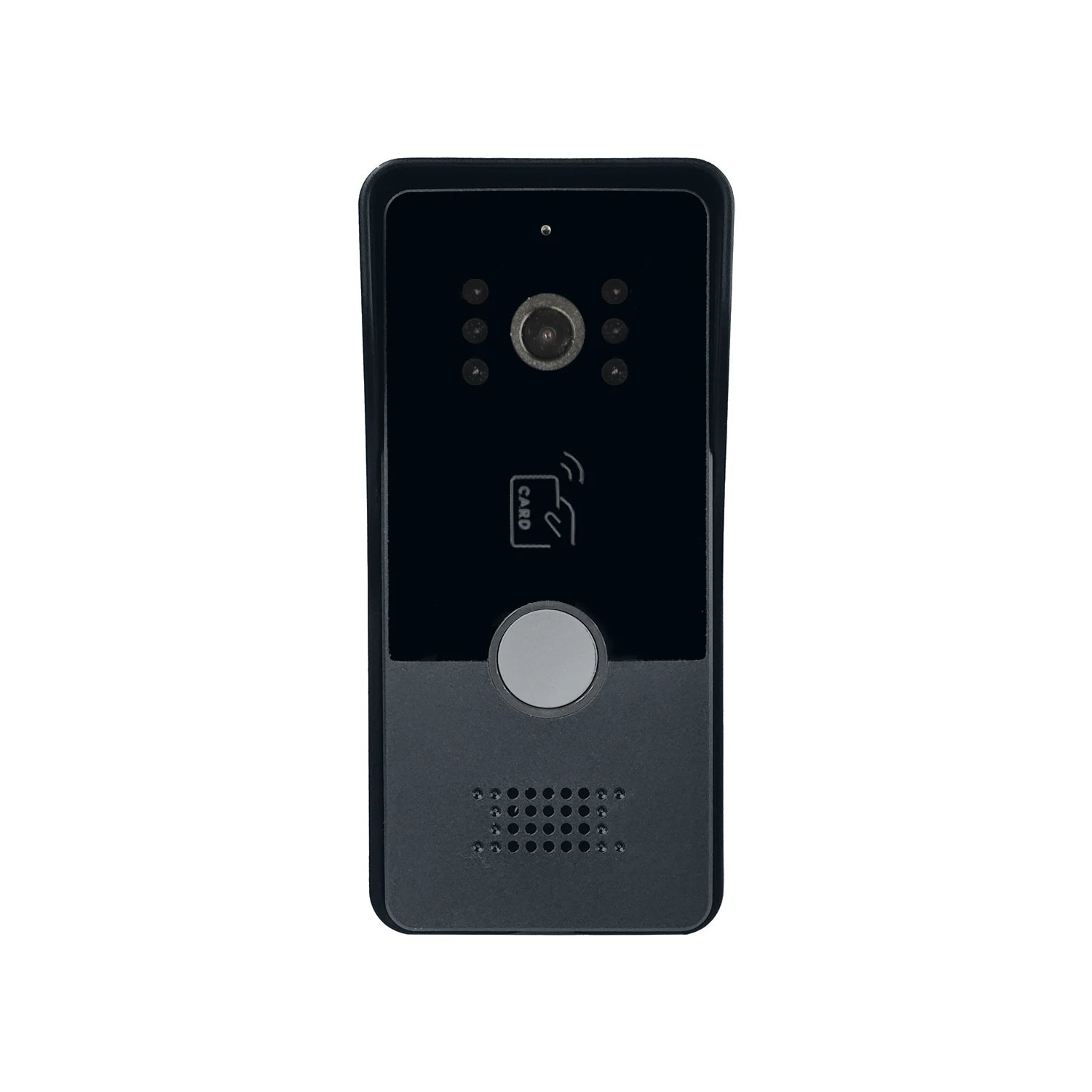

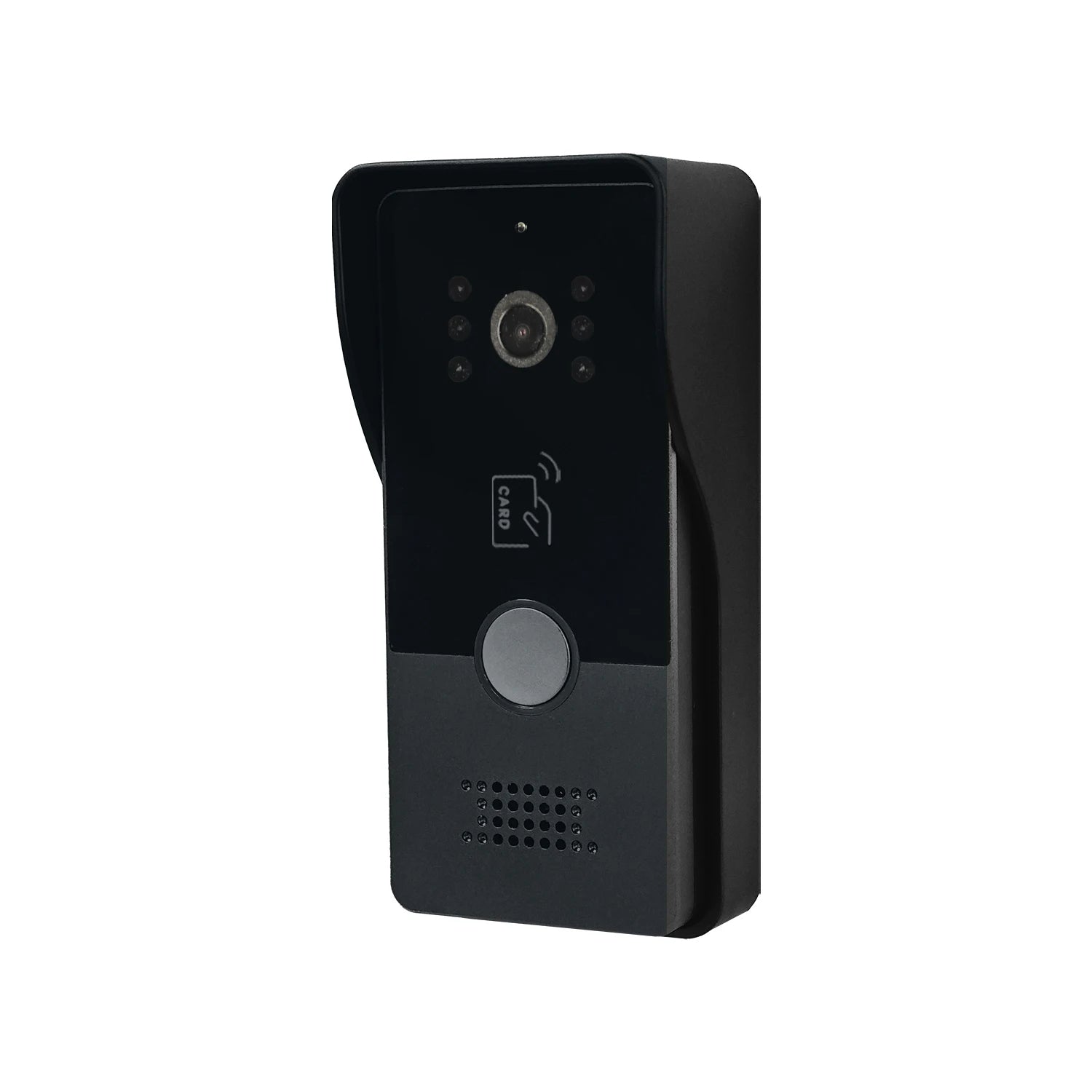

Outdoor Station:

• Camera: 2MP / 1080P

• Night Vision: IR CUT switch, black & white night mode

• Fill Light: 850nm, 6 infrared LEDs

• Dimensions: 132.5 × 62.5 × 38.5mm

• RFID: 13.56MHz card support

Power Adapter:

• Input: AC 100–240V 50/60Hz

• Output: DC 18V 2A

Wiring & Distance:

• Monitor to outdoor station:

  • 0–50m (12V voltage, RVV2×0.5mm²)

  • 0–200m (24V voltage, RVV2×0.5mm²)

• Outdoor station to door lock: 0–50m

• 2-wire connection (no polarity required)

App Functions:

• Call, photo, video

• Monitor and remote unlock

• Cloud storage support

• Alarm message notification

• Video playback

Package Contents:

1 × 7" Indoor Monitor
1 × Outdoor Camera Station
1 × Power Adapter

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor
